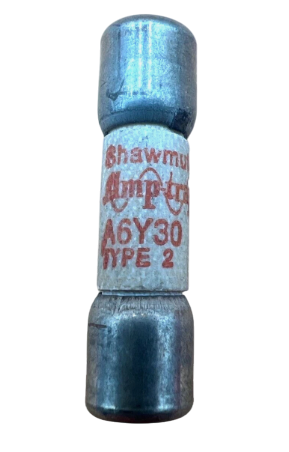

Cutler Hammer A6Y30-2 - Class K Fuse 30A 600V (200kA AIC)

Cutler Hammer A6Y30-2 is a Class K fuse from the Amp-Trap family designed for low voltage circuit protection in industrial applications. It features a 30A current rating and a 600V AC voltage rating, providing an interrupting capacity of 200,000 amperes to safely clear high-level faults. The fuse is constructed with a single-barrel design, measures 0.81 inches in diameter, and weighs 5.19 lb, engineered for reliable performance in demanding environments. It complies with industry standards for Class K fuses, ensuring consistent protection characteristics. Typical applications include motor branch circuits, feeders, and service entrance equipment where high interrupting capacity is required.

Key Features & Specifications

• Type: Class K Amp-Trap fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 0.81 inches diameter
• Standards: Class K fuse standards
• Applications: Motor branch circuits, feeders, service entrance equipment
• AIC rating: 200kA @ 600V
• Class Rating: K
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• Manufacturer: Eaton
• Family: Amp-Trap
• Type: A6Y
