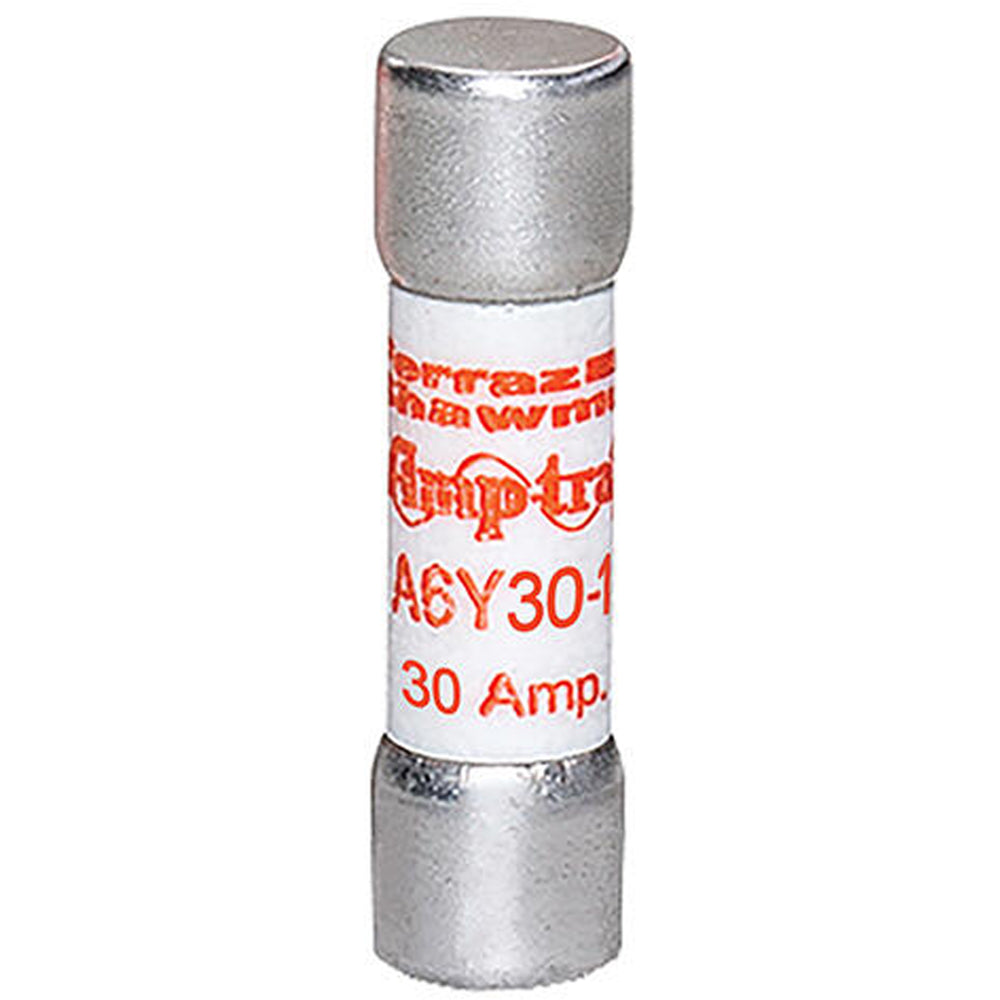

Cutler Hammer A6Y30-1 - Class K Fuse 30A (200kA AIC @ 600V)

Cutler Hammer A6Y30-1 is a Class K low-voltage fuse from the Amp-Trap family designed to provide superior short-circuit protection in industrial electrical systems. It features a 30A current rating and a 600V AC voltage rating, capable of interrupting faults up to 200kA. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 0.81 inches in diameter with a weight of 5.19 lb. This fuse is engineered to meet industry standards for high-performance circuit protection. It is typically applied in motor branch circuits, feeders, and mains where high interrupting capacity and current limitation are required.

Key Features & Specifications

• Type: Class K, Amp-Trap, current-limiting fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 0.81 inch diameter
• Standards: Industry standards for high-performance circuit protection
• Applications: Motor branch circuits, feeders, mains
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: K
• Weight: 5.19 lb

Product Identification

• UPC: 782001902438
• GTIN: 00782001902438
