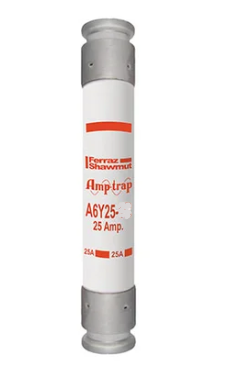

Cutler Hammer A6Y25-2SG - Class K Time-Delay Fuse 25A 600V (200kA AIC)

The Cutler Hammer A6Y25-2SG is a Class K low-voltage fuse from the Amp-Trap family, engineered to provide reliable overcurrent protection in industrial electrical systems. It features a 25A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at 600V to safely clear severe fault currents. The fuse is constructed as a single-barrel unit with a 1.5-inch diameter and a robust design, weighing 5.19 lb for durable performance. This component complies with industry standards for Class K fuses, ensuring consistent protection characteristics. It is typically applied in motor branch circuits, feeders, and other industrial applications where high-interrupting capacity and time-delay characteristics are required to prevent nuisance tripping from motor starting currents.

Key Features & Specifications

• Type: Class K, Amp-Trap time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 25A
• Dimensions: 1.5-inch diameter
• Standards: Meets Class K fuse standards
• Applications: Motor branch circuits, industrial feeders, electrical distribution systems
• AIC rating: 200kA at 600V
• Class Rating: K
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78200190206
• GTIN: 00782001902063
