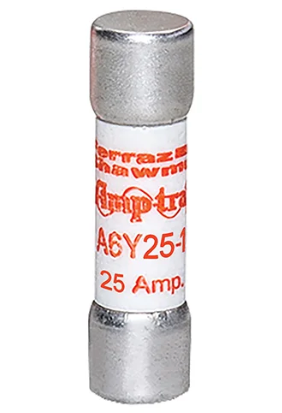

Cutler Hammer A6Y25-1 - Class K Fuse 25A 600V (200kA AIC)

The Cutler Hammer A6Y25-1 is a Class K low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide reliable short-circuit protection for electrical circuits. It features a 25A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at 600V to safely clear major fault currents. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 1.5 inches in diameter, contributing to a robust and compact form factor. This fuse complies with industry standards for Class K fuses, ensuring consistent performance and safety in demanding environments. Typical applications include the protection of motor circuits, feeders, and branch circuits in industrial power distribution systems, switchgear, and control panels.

Key Features & Specifications

• Type: Class K, Amp-Trap, current-limiting, low-voltage fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 25A
• Dimensions: 1.5" Diameter
• Standards: Class K
• Applications: Motor circuit protection, industrial feeders, branch circuits, switchgear, control panels
• AIC rating: 200kA @ 600V AC
• Connection: Ferrule
• Barrels: 1
• Class Rating: K
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse
• Weight: 1 lb

Product Identification

• UPC: 78200190242
• GTIN: 00782001902421
