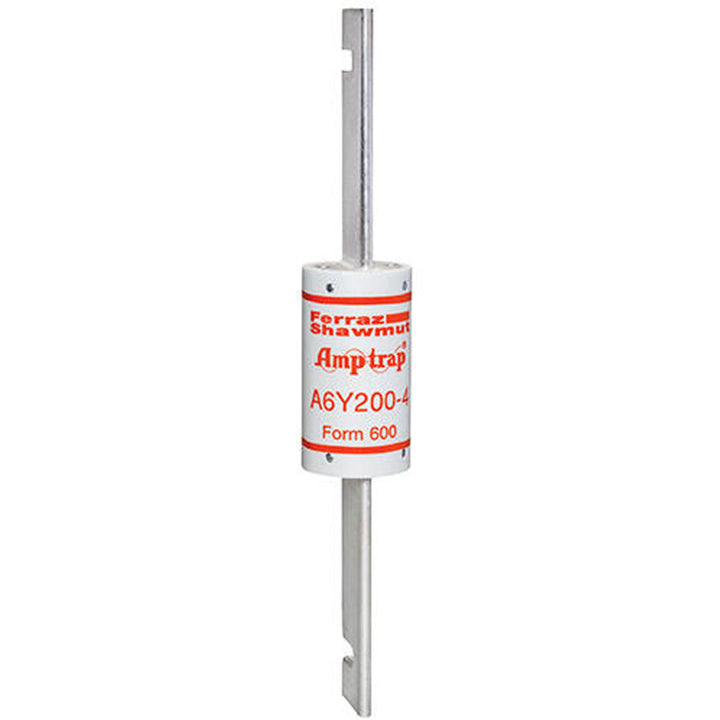

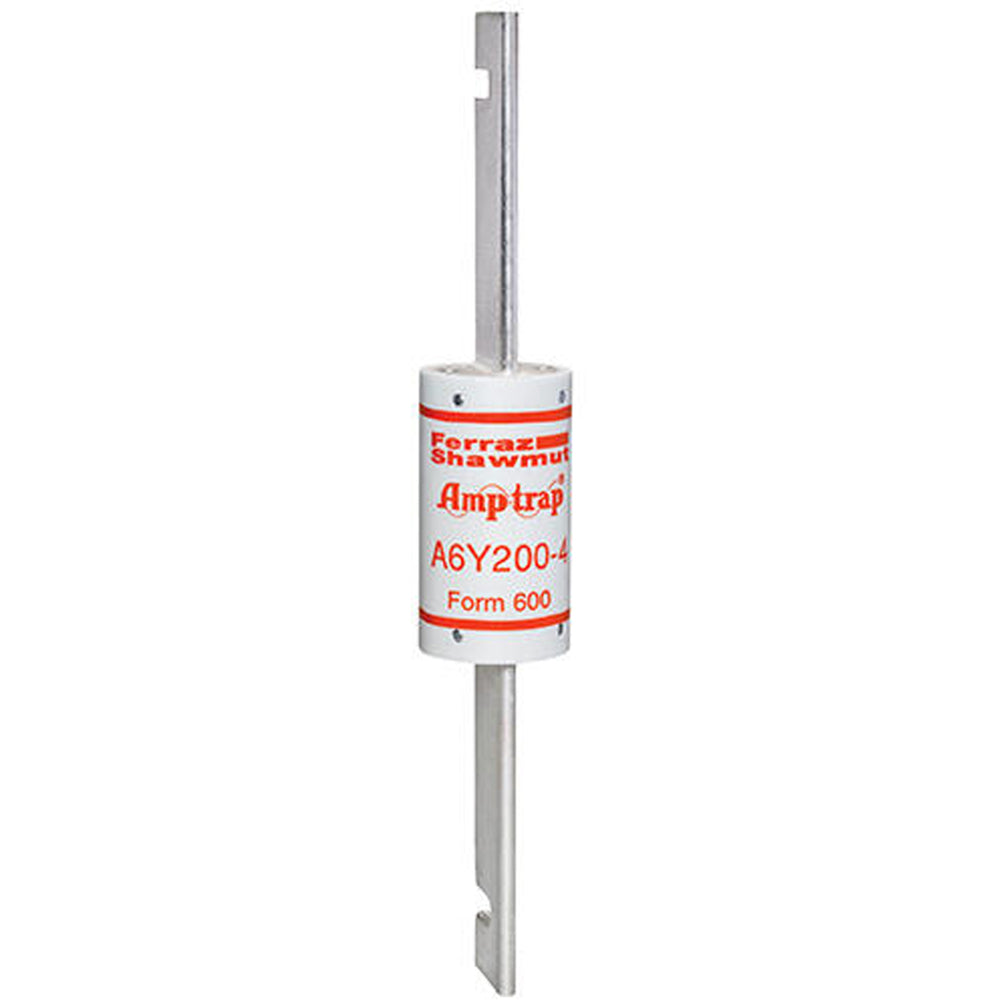

Cutler Hammer A6Y200-4 - Class K Fuse 200A (200kA AIC @ 600V)

Cutler Hammer A6Y200-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection for electrical distribution systems. It features a 200A current rating and a 600V AC voltage rating, capable of interrupting faults up to 200kA. The fuse is constructed as a single-barrel, plug-in type unit with a 1.5-inch diameter and a Class K current-limiting rating. It complies with industry standards for reliable performance in demanding industrial environments, making it suitable for protecting motor circuits, feeders, and branch circuits where high fault currents are present.

Key Features & Specifications

• Type: Amp-Trap A6Y, Low Voltage Current-Limiting Fuse, Plug-In Connection
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 1.5-inch Diameter
• Standards: Class K Current-Limiting
• Applications: Motor Circuit Protection, Feeders, Branch Circuits
• AIC rating: 200kA @ 600V AC
• Connection: Plug-In
• Barrels: 1
• Class Rating: K
• Weight: 1 lb

Product Identification

• UPC: 782001905583
• GTIN: 00782001905583
