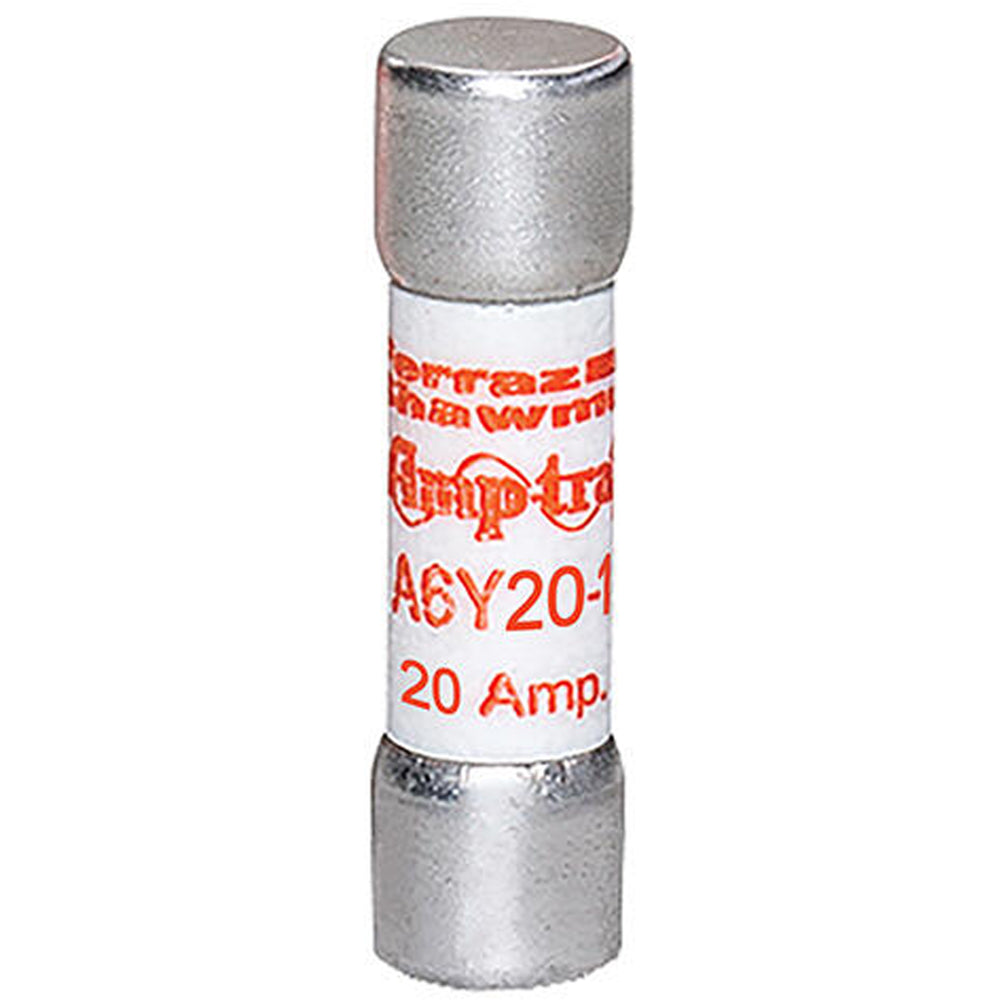

Ferraz Shawmut A6Y20-1 - Class K Fuse 20A@600V (200kA AIC)

Ferraz Shawmut A6Y20-1 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC applications with a 20A current capacity, it features a compact ferrule connection design with a 0.81" diameter and single-barrel construction. This Class K fuse meets rigorous industry standards with a 200kA interrupting capacity at 600V, providing reliable short-circuit protection for motor control centers, switchgear, and power distribution equipment.

Key Features & Specifications

• Type: A6Y current-limiting fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 20A
• Dimensions: 0.81" diameter
• Standards: Class K rating
• Applications: Motor controls, switchgear, power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Family: Amp-Trap

Product Identification

• UPC: 782001902414
• GTIN: 00782001902414
