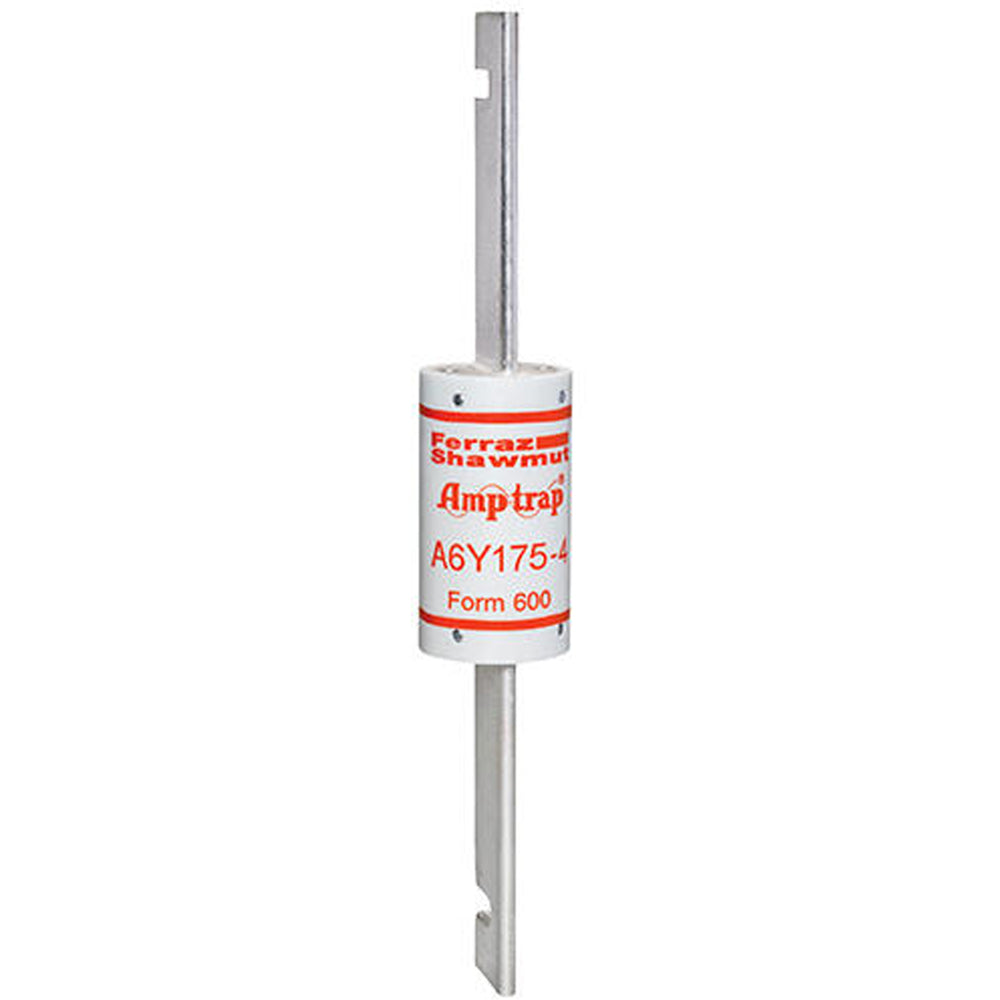

Cutler Hammer A6Y175-4 - Class K Fuse 175A (200kA AIC @ 600V)

Cutler Hammer A6Y175-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection for industrial electrical systems. It features a 175A current rating and a 600V voltage rating, capable of interrupting faults up to 200kA. The fuse is constructed as a single-barrel, plug-in type unit with a 1.5-inch diameter and a Class K rating for fast-acting protection. It is engineered to meet rigorous industry standards for safety and performance in demanding environments, making it suitable for protecting motor circuits, feeders, and branch circuits in industrial control panels and distribution equipment.

Key Features & Specifications

• Type: Amp-Trap A6Y, Low Voltage Current-Limiting Fuse, Plug-In Connection, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 175A
• Dimensions: 1.5-inch Diameter
• Standards: Class K Rating
• Applications: Industrial motor circuit protection, feeders, branch circuits, control panels
• AIC rating: 200kA @ 600V
• Connection: Plug-In
• Barrels: 1
• Class Rating: K
• Weight: 1 lb

Product Identification

• UPC: 782001905576
• GTIN: 00782001905576
