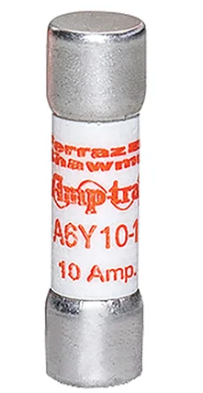

Cutler Hammer A6Y10 - Class K Fuse 10A 600V (200kA AIC Rating)

Cutler Hammer A6Y10 is a Class K current-limiting fuse designed for overcurrent protection in low voltage electrical systems. This 10A fuse features a 600V AC voltage rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. Constructed with ferrule connections and a single barrel design, the fuse measures 0.81 inches in diameter and weighs 5 pounds, built to withstand demanding industrial environments. The A6Y10 complies with industry standards for Class K fuses and is typically applied in industrial control circuits, motor branch circuits, and panelboard protection where current limitation and high interrupting ratings are required.

Key Features & Specifications

• Type: Class K current-limiting fuse with ferrule connections, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 0.81" diameter
• Standards: Class K fuse standards
• Applications: Industrial control circuits, motor branch circuits, panelboard protection
• AIC Rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: K
• Weight: 5 lb
• Item Subcategory: Low Voltage
• Family: Amp-Trap
