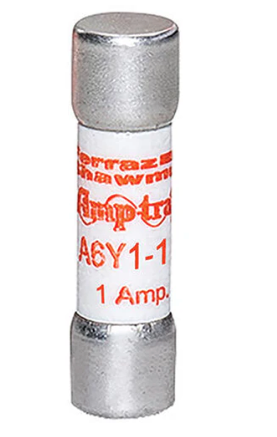

Cutler Hammer A6Y1-1R - Class K Fuse 1A (200kA AIC @ 500V)

Cutler Hammer A6Y1-1R is a low voltage current-limiting fuse designed for providing superior short-circuit protection in industrial electrical systems. It features a 500V AC voltage rating and a 1A current rating, ensuring reliable operation under specified electrical conditions. The fuse is constructed with a single-barrel ferrule connection and measures 0.81 inches in diameter, contributing to its compact and robust physical design. It complies with Class K fuse standards and is engineered to interrupt up to 200kA at 500V, meeting rigorous industry requirements for fault current protection. Typical applications include the protection of motor circuits, transformers, and feeder circuits where high interrupting capacity and current limitation are critical.

Key Features & Specifications

• Type: Class K5, Amp-Trap 200, A6Y, current-limiting, low voltage fuse
• Voltage Rating: 500V AC
• Current Rating: 1A
• Dimensions: 0.81 inches diameter
• Standards: Class K
• Applications: Protection of motor circuits, transformers, and feeder circuits
• AIC rating: 200,000A @ 500V AC
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78200190223
• GTIN: 00782001902230
