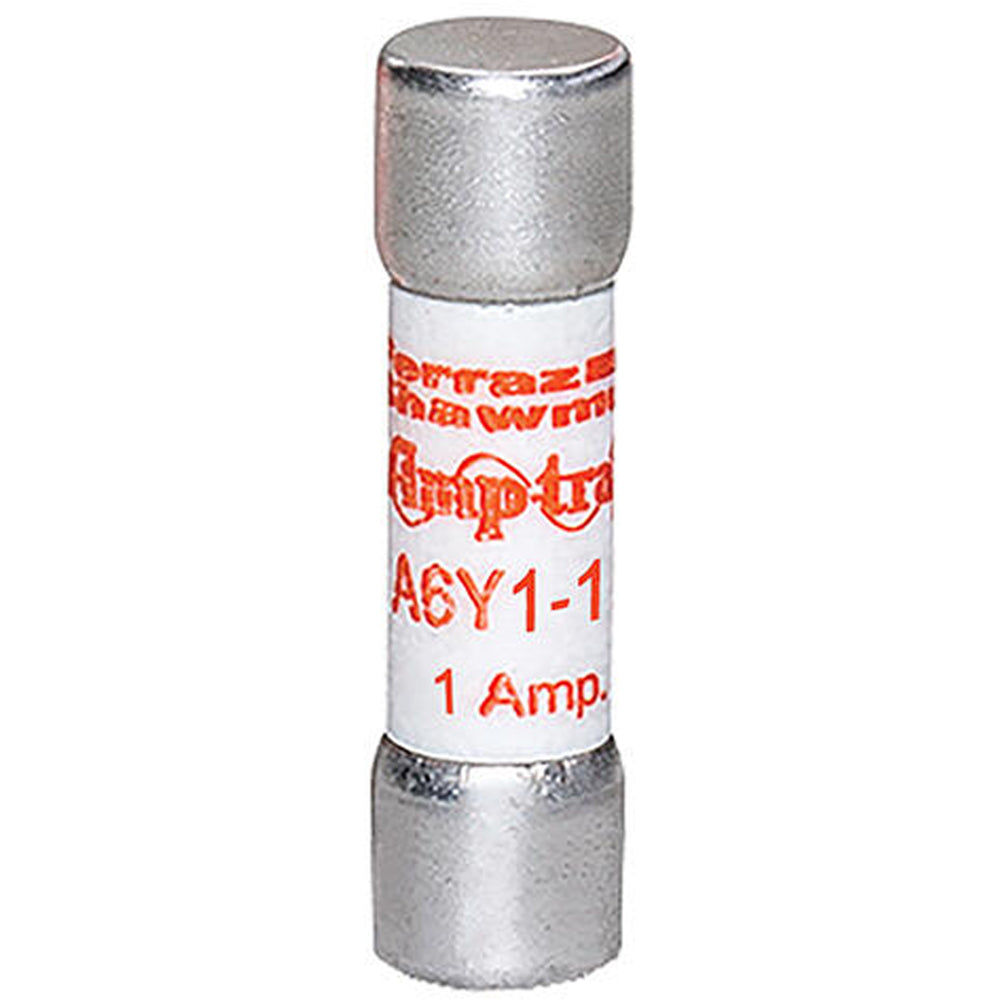

Cutler Hammer A6Y1-1 - Class K Fuse 1A (200kA AIC @ 500V)

Cutler Hammer A6Y1-1 is a Class K low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide reliable overcurrent protection in industrial electrical systems. It features a 500V AC voltage rating and a 1A current rating, capable of interrupting up to 200kA at its rated voltage. The fuse is constructed with a single-barrel ferrule connection, measures 0.81 inches in diameter, and has a total weight of 5.19 lb. It is designed to meet industry standards for current-limiting fuses, ensuring protection for sensitive equipment such as motor controllers, transformers, and feeder circuits in demanding industrial environments.

Key Features & Specifications

• Type: Class K, Amp-Trap, current-limiting fuse, single barrel, ferrule connection
• Voltage Rating: 500V AC
• Current Rating: 1A
• Dimensions: 0.81 inches diameter
• Standards: Industry standards for current-limiting fuses
• Applications: Protection for motor controllers, transformers, feeder circuits
• Weight: 5.19 lb
• Class Rating: K
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@500V
• Item Subcategory: Low Voltage
• Family: Amp-Trap

Product Identification

• GTIN: 00782001902278
