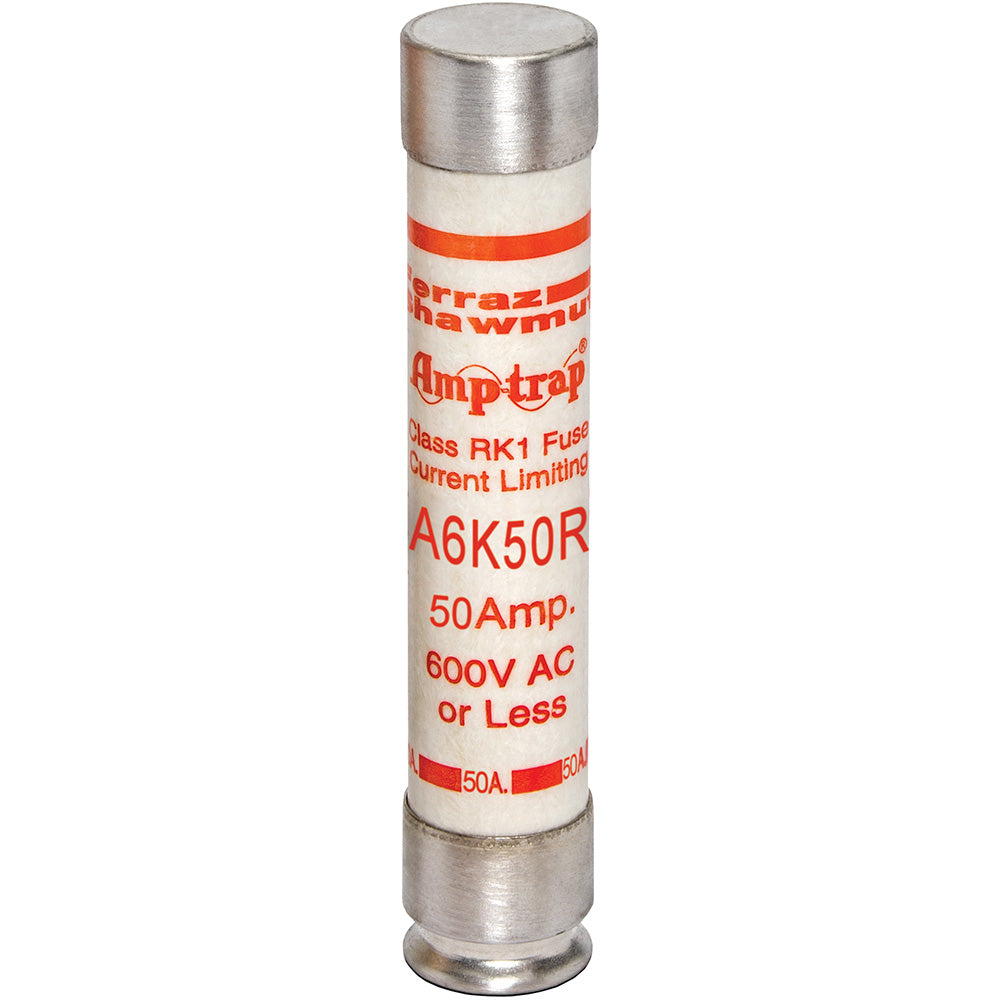

Mersen A6K50R - RK1 Class Fuse 50A 600V (200kA AIC Rating)

Mersen A6K50R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC rating with a 50A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel design measures 1.06 inches in diameter with a compact 0.34 lb construction, meeting UL/CSA standards for safety compliance. Engineered for demanding environments, it provides time-delay characteristics to withstand temporary overloads while protecting against fault currents in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Current-limiting time-delay fuse (RK1 class)
• Voltage Rating: 600V AC
• Current Rating: 50A
• Dimensions: 1.06" diameter
• Standards: UL/CSA listed
• Applications: Motor controls, transformers, power distribution
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 0.34 lb

Product Identification

• UPC: 782001915667
• GTIN: 00782001915667
