Ferraz Shawmut A6K350R - RK1 Class Fuse 350A@600V (200kA AIC)
Regular price
$500.82
$500.82
Regular price
$1,288.10
$1,288.10
Sale price
$500.82
$500.82
Save $787.28
/
- Low stock - 1 item left
- Backordered, shipping soon

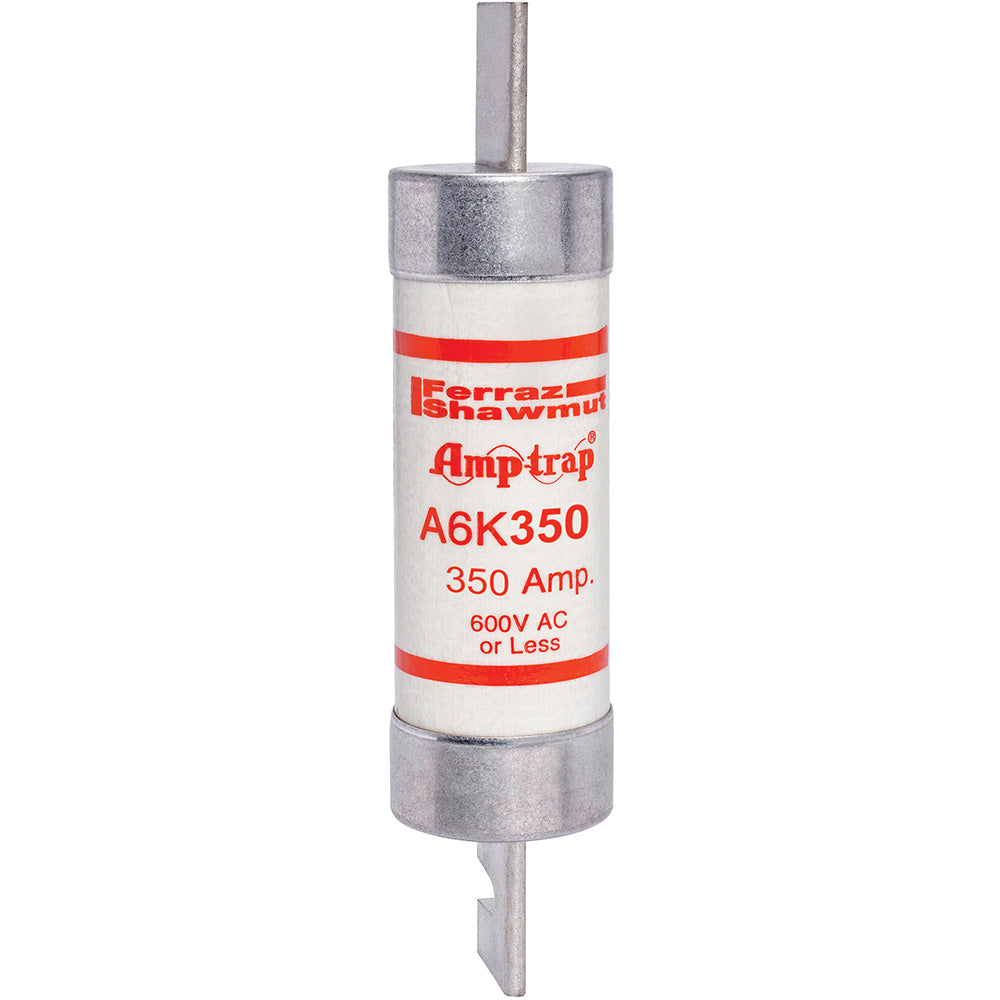

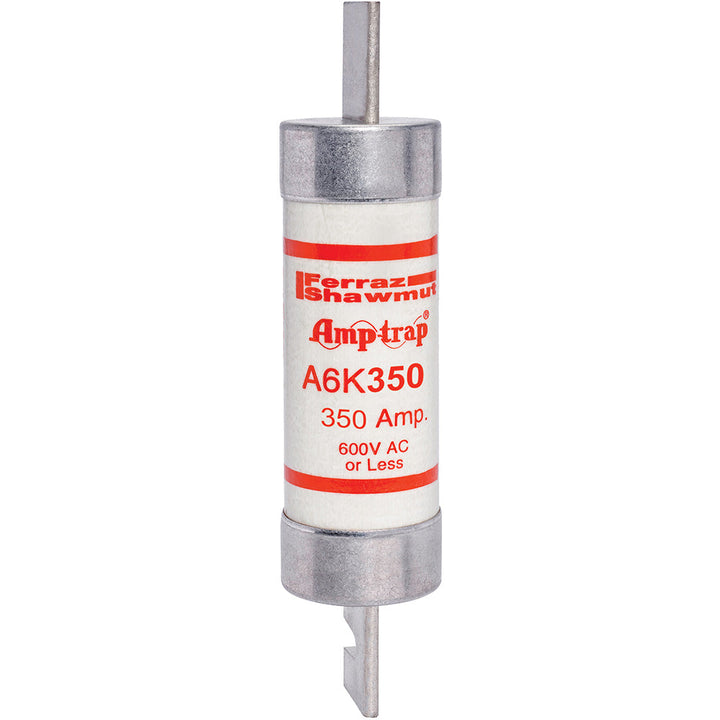

Ferraz Shawmut A6K350R is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC rating with a 350A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel construction measures 2.56 inches in diameter with an 11.63-inch length and 3 lb weight, built to UL/CSA standards for safety compliance. Typical applications include motor control centers, switchgear, and industrial panelboards requiring robust overcurrent protection.
Key Features & Specifications
Key Features & Specifications
- Type: A6K-R series current-limiting fuse with RK1 classification
- Voltage Rating: 600V AC
- Current Rating: 350A
- Dimensions: 2.56" diameter x 11.63" length
- Weight: 3 lb
- Standards: UL/CSA compliant
- Applications: Industrial power distribution, MCCs, switchgear
- Class Rating: RK1
- Barrels: 1
- AIC rating: 200kA@600V
- UPC: 782001915865
- GTIN: 00782001915865
