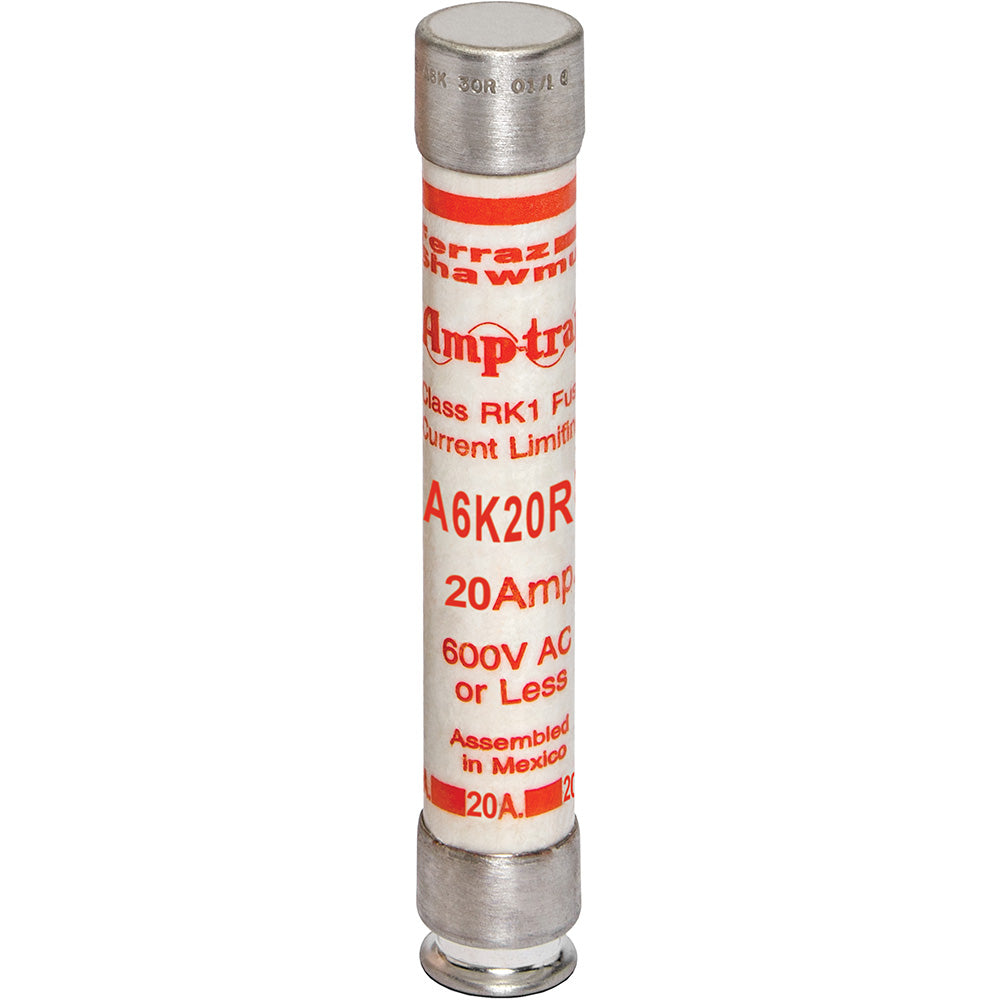

Mersen A6K20R - RK1 Class Fuse 600V/20A (200kA AIC)

Mersen A6K20R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC rating and 20A current capacity with a 200kA interrupting rating at 600V for high-fault protection. The cylindrical design measures 0.81 inches in diameter with a 5-inch length, constructed with a single barrel configuration and weighing 0.18 lb. UL and CSA certified, this Mexico-manufactured fuse meets stringent safety standards for use in motor control centers, switchgear, and panelboard applications requiring reliable overcurrent protection.

Key Features & Specifications

• Type: A6K-R series current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 20A
• Dimensions: 0.81" diameter x 5" length
• Class Rating: RK1
• Barrels: 1
• AIC Rating: 200kA@600V
• Certification: UL, CSA
• Weight: 0.18 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001915582
• GTIN: 00782001915582
