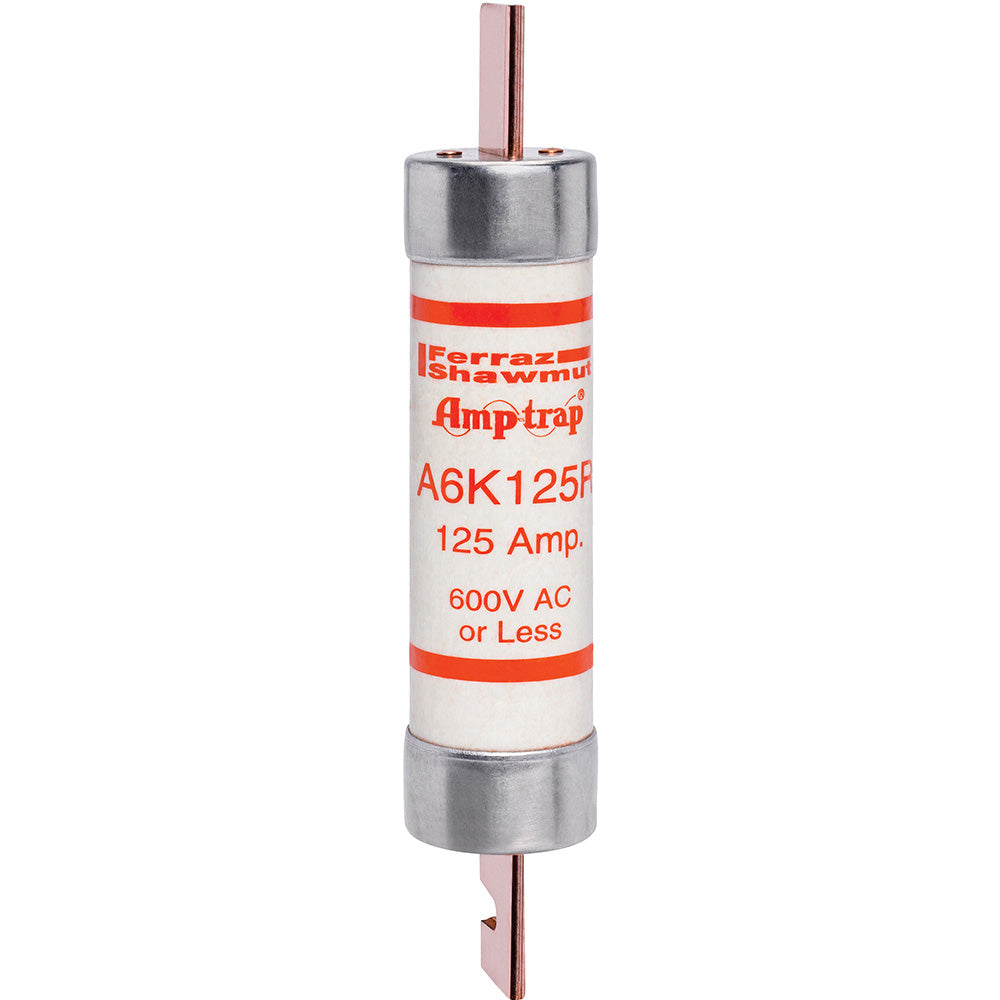

Ferraz Shawmut A6K125R - RK1 Fuse 125A (200kA@600V Interrupting Capacity)

Ferraz Shawmut A6K125R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC rating with a 125A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The cylindrical fuse measures 1.81 inches in diameter with a 9.63-inch length, constructed with durable materials for harsh environments. It complies with industry standards for current-limiting fuses and is manufactured in Mexico as part of the A6K-R series. Typical applications include motor control centers, switchgear, and industrial power distribution panels requiring high interrupting capacity.

Key Features & Specifications

• Type: A6K-R series current-limiting fuse, RK1 class
• Voltage Rating: 600V AC
• Current Rating: 125A
• Dimensions: 1.81" diameter x 9.63" length
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 782001915773
• GTIN: 00782001915773
