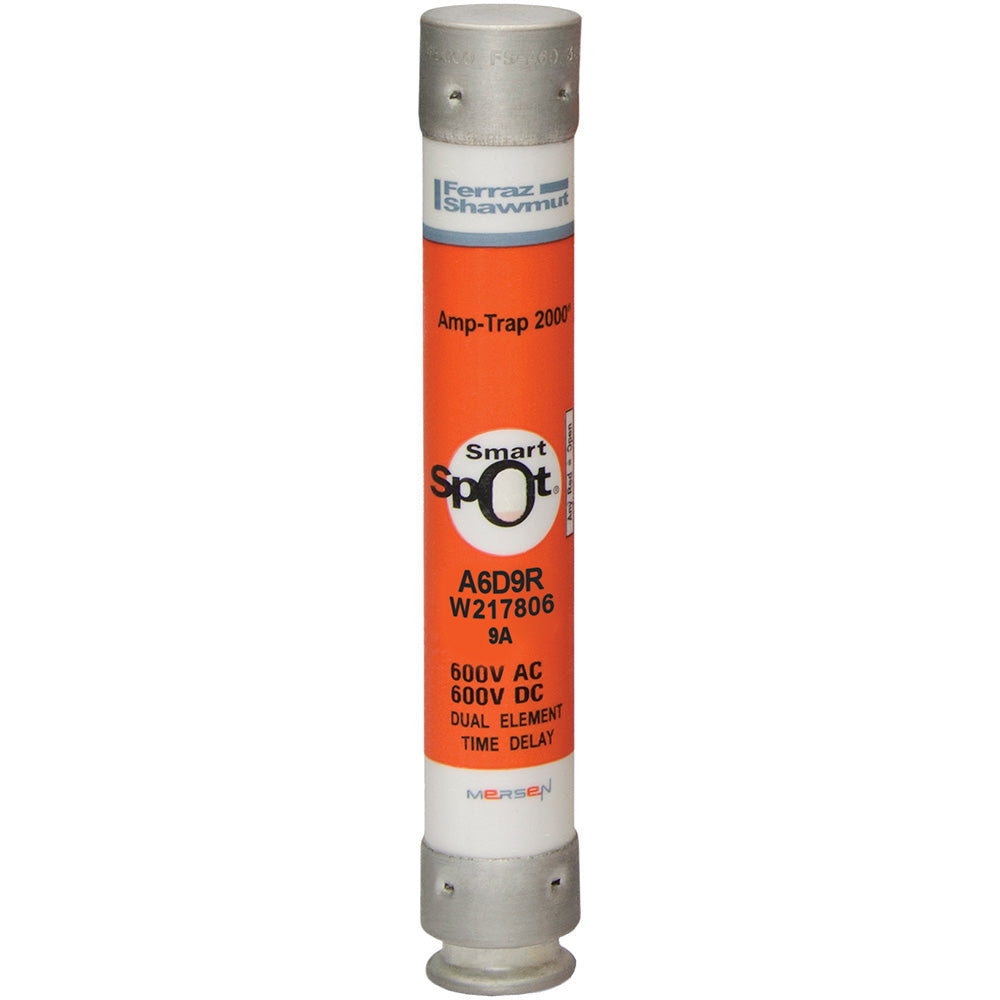

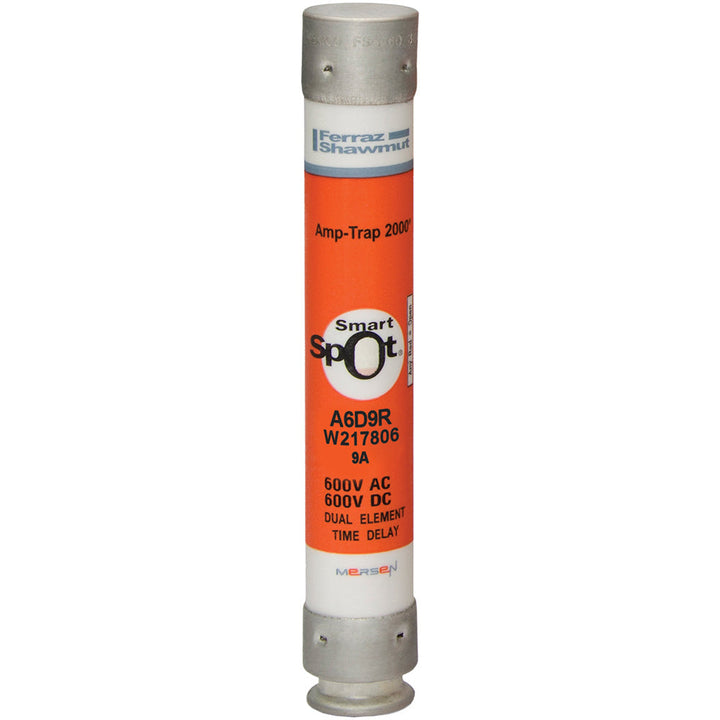

Mersen A6D9R - RK1 Class Fuse 600V/9A (200kA AIC Rating)

Mersen A6D9R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 9A current capacity and 200kA interrupting rating at 600V for high-fault protection. The compact cylindrical design measures 5" in length with a 0.81" diameter, constructed with durable materials meeting CSA C22.2 No. 248.12 and UL 248-12 standards. Certified for both AC and DC applications (UL File E2137), it provides reliable protection for motor control centers, panelboards, and industrial power distribution equipment where selective coordination is required.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse (A6D-R type)
• Voltage Rating: 600V AC/DC
• Current Rating: 9A
• Dimensions: 5" length x 0.81" diameter
• Weight: 0.14 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor protection, panelboards, industrial power distribution
• Class Rating: RK1
• AIC rating: 200kA@600V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001991791
• GTIN: 00782001991791
