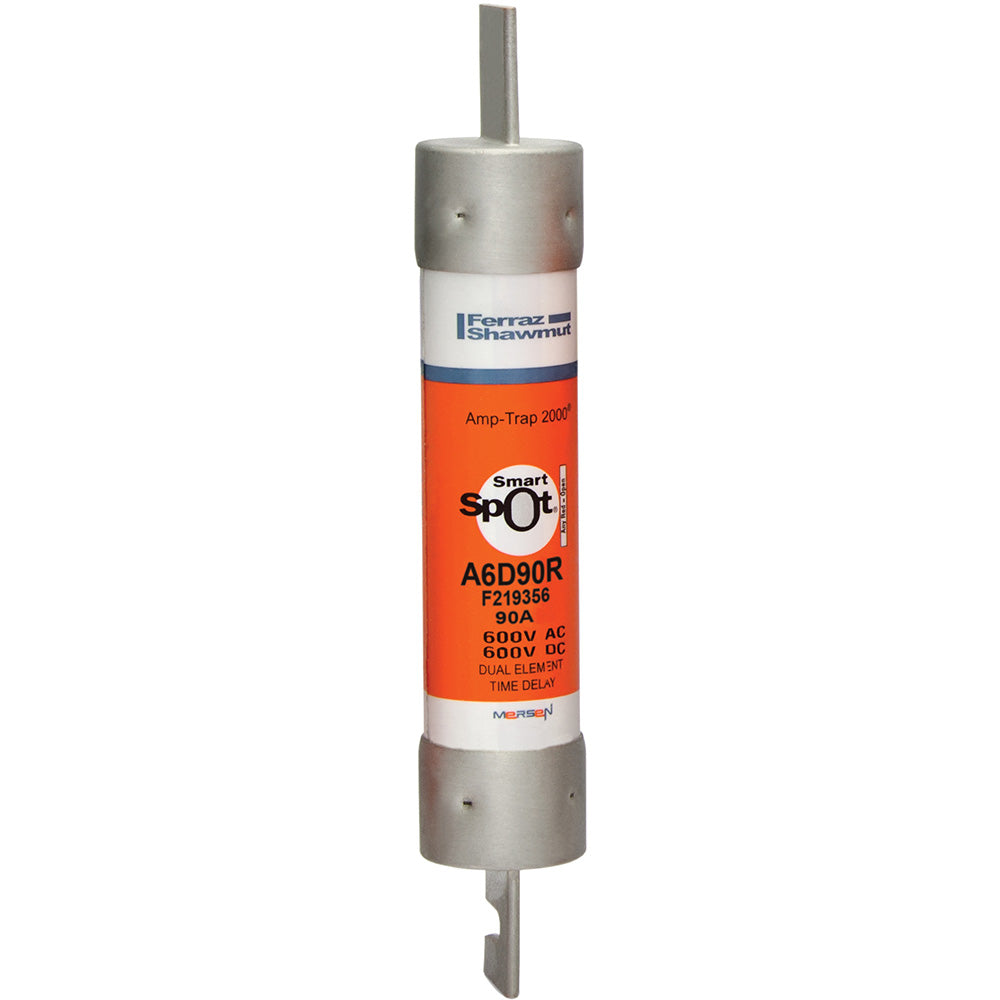

Mersen A6D90R - RK1 Class Fuse 90A 600V (200kA AIC Current-Limiting)
Regular price
$80.58
$80.58
Regular price
$144.66
$144.66
Sale price
$80.58
$80.58
Save $64.08
/
- Low stock - 5 items left
- Backordered, shipping soon
Mersen A6D90R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC rating with a 90A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The 7-7/8" long fuse body has a 1.31" diameter barrel construction with sand-filled arc quenching for rapid fault clearing. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards, it's engineered for panelboards, switchgear, and motor control centers requiring high-performance protection.
Key Features & Specifications
Key Features & Specifications
- Type: Amp-Trap 2000 series current-limiting fuse (A6D-R)
- Voltage Rating: 600V AC/DC
- Current Rating: 90A
- Dimensions: 7-7/8" length x 1.31" diameter
- Weight: 5 lb
- Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
- Applications: Industrial power distribution, motor protection
- Class Rating: RK1
- AIC rating: 200kA@600V
- Barrels: 1
- Country of Origin: Mexico
- UPC: 782001992101
- GTIN: 00782001992101
