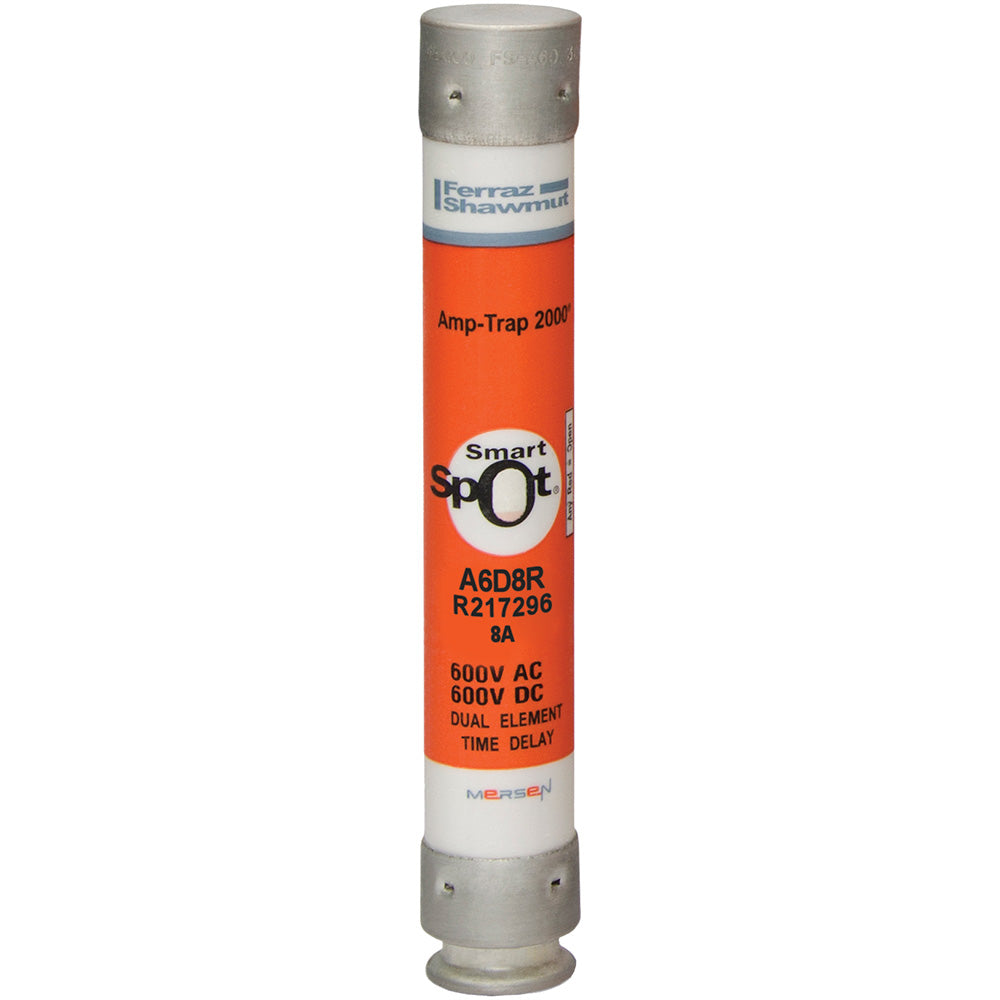

Cutler Hammer A6D8R - Class RK1 Fuse 8A 600V (200kA AIC Rating)

The Cutler Hammer A6D8R is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating with an 8A current rating and offers 200kA interrupting capacity at 600V for reliable fault protection. The fuse construction includes a single-barrel design measuring 5 inches in length with a 0.81-inch diameter and weighs 0.14 lb, utilizing current-limiting technology to protect against high fault currents. This fuse meets CSA C22.2 No. 248.12, DC UL 248, and UL 248-12 File E2137 standards, ensuring compliance with industry safety requirements. Typical applications include motor branch circuits, transformers, and industrial control panels where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Class RK1 current-limiting fuse, single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 8A
• Dimensions: 5" length, 0.81" diameter
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Motor branch circuits, transformers, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 0.14 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001991784
• GTIN: 00782001991784
