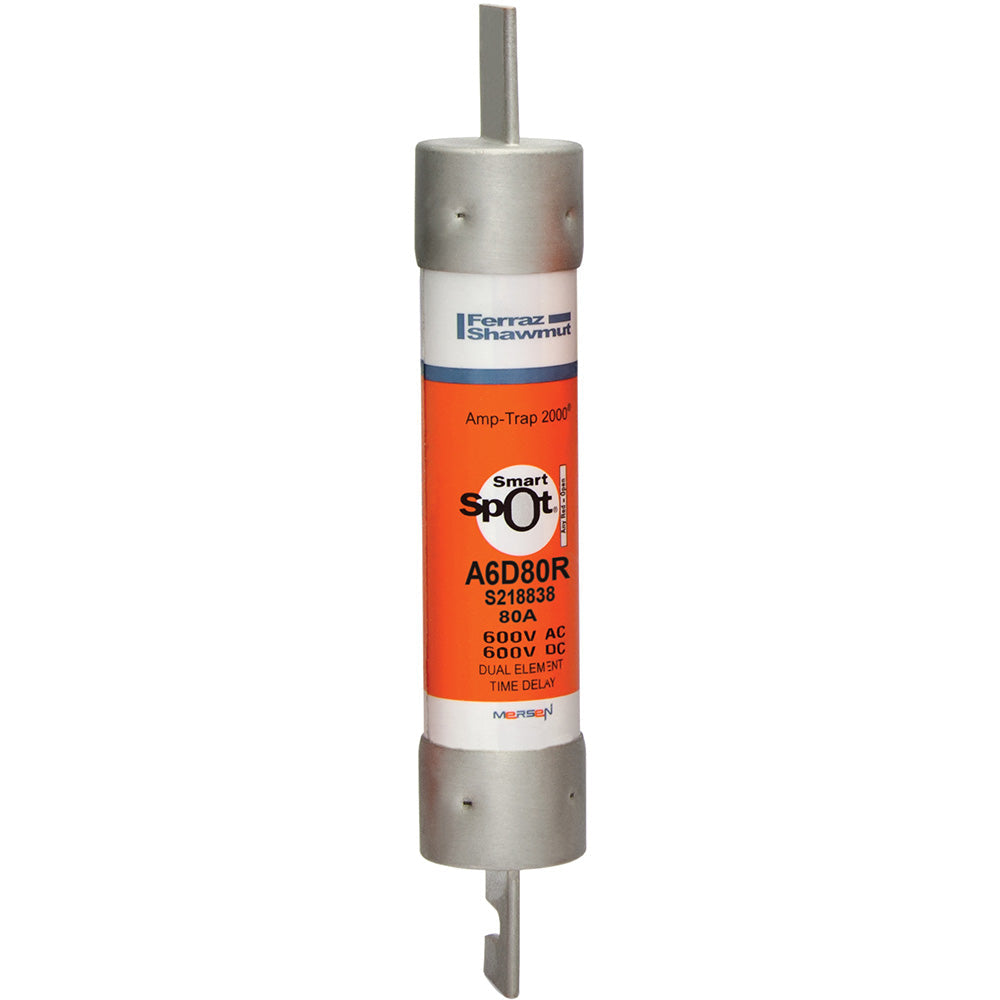

Mersen A6D80R - RK1 Class Fuse 600V/80A (200kA AIC Current-Limiting)
Regular price
$71.89
$71.89
Regular price
$1,792.25
$1,792.25
Sale price
$71.89
$71.89
Save $1,720.36
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen A6D80R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC rating with an 80A current capacity and 200kA interrupting rating at 600V, housed in a durable 1.31-inch diameter barrel construction measuring 7-7/8 inches in length. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards, the Amp-Trap 2000 series fuse provides reliable short-circuit protection for motor control centers, switchgear, and panelboards in demanding environments.
Key Features & Specifications
Key Features & Specifications
- Type: Current-limiting low-voltage fuse (A6D-R) with time-delay characteristics
- Voltage Rating: 600V AC/DC
- Current Rating: 80A
- Dimensions: 7-7/8" length x 1.31" diameter
- Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
- Applications: Industrial power distribution, motor protection, switchgear
- Class Rating: RK1
- AIC rating: 200kA@600V
- Barrels: 1
- Weight: 0.65 lb
- Country of Origin: Mexico
- UPC: 782001992095
- GTIN: 00782001992095
Quote Request
