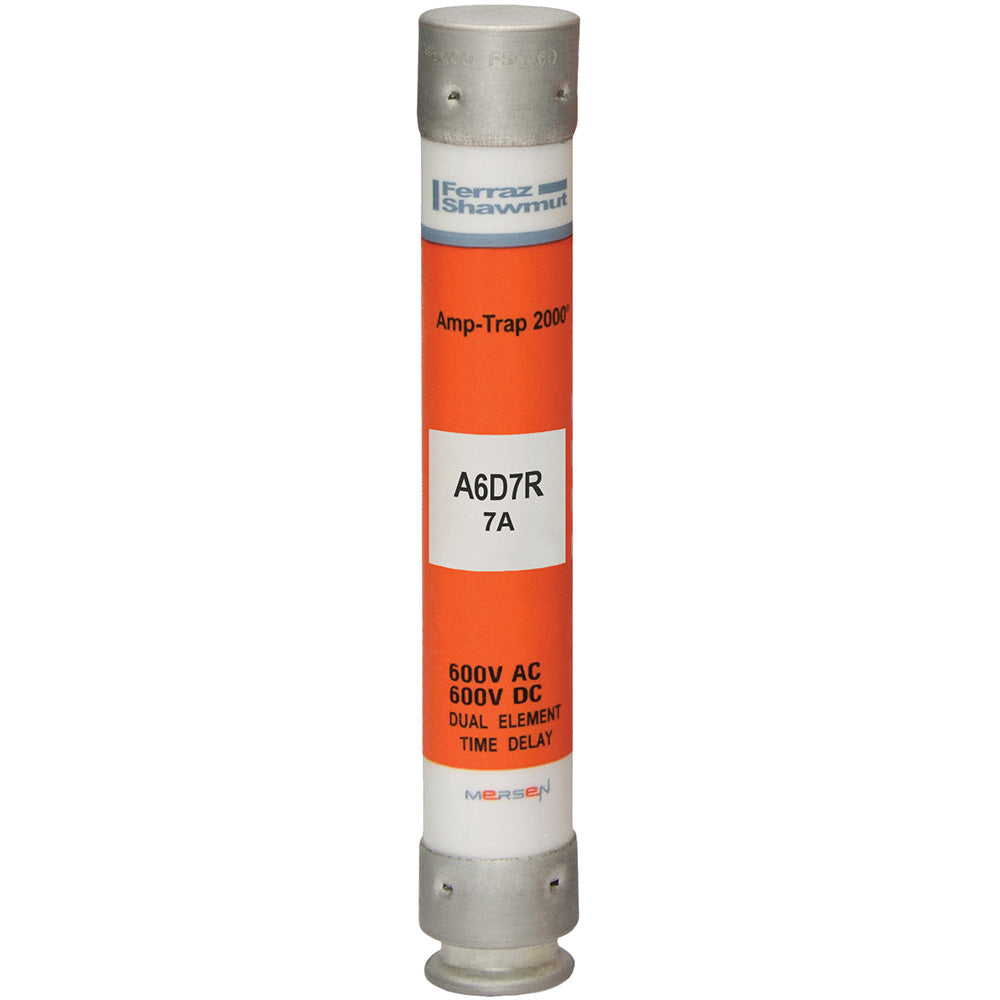

Mersen A6D7R - RK1 Class Fuse 600V/7A (200kA Interrupt Rating)

Mersen A6D7R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating with a 7A current rating, providing high interrupting capacity (200kA@600V) for reliable overload and short-circuit protection. The fuse has a compact cylindrical design with a 0.81" diameter and 5" length, constructed as a single-barrel RK1 class fuse with time-delay characteristics. It meets stringent safety standards including CSA C22.2 No. 248.12 and UL 248-12 (File E2137) certifications. Typical applications include motor branch circuits, transformers, and power distribution equipment requiring selective coordination.

Key Features & Specifications

• Type: Amp-Trap 2000 series time-delay current-limiting fuse (RK1 class)
• Voltage Rating: 600V AC/DC
• Current Rating: 7A
• Dimensions: 0.81" diameter x 5" length
• Weight: 0.14 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• AIC Rating: 200kA@600V
• Construction: Single-barrel design
• Country of Origin: Mexico

Product Identification

• UPC: 782001991777
• GTIN: 00782001991777
