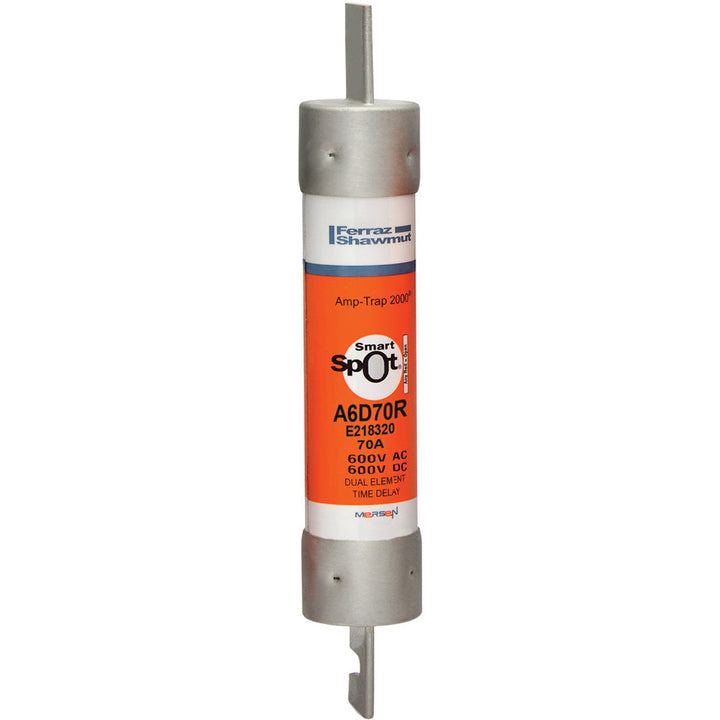

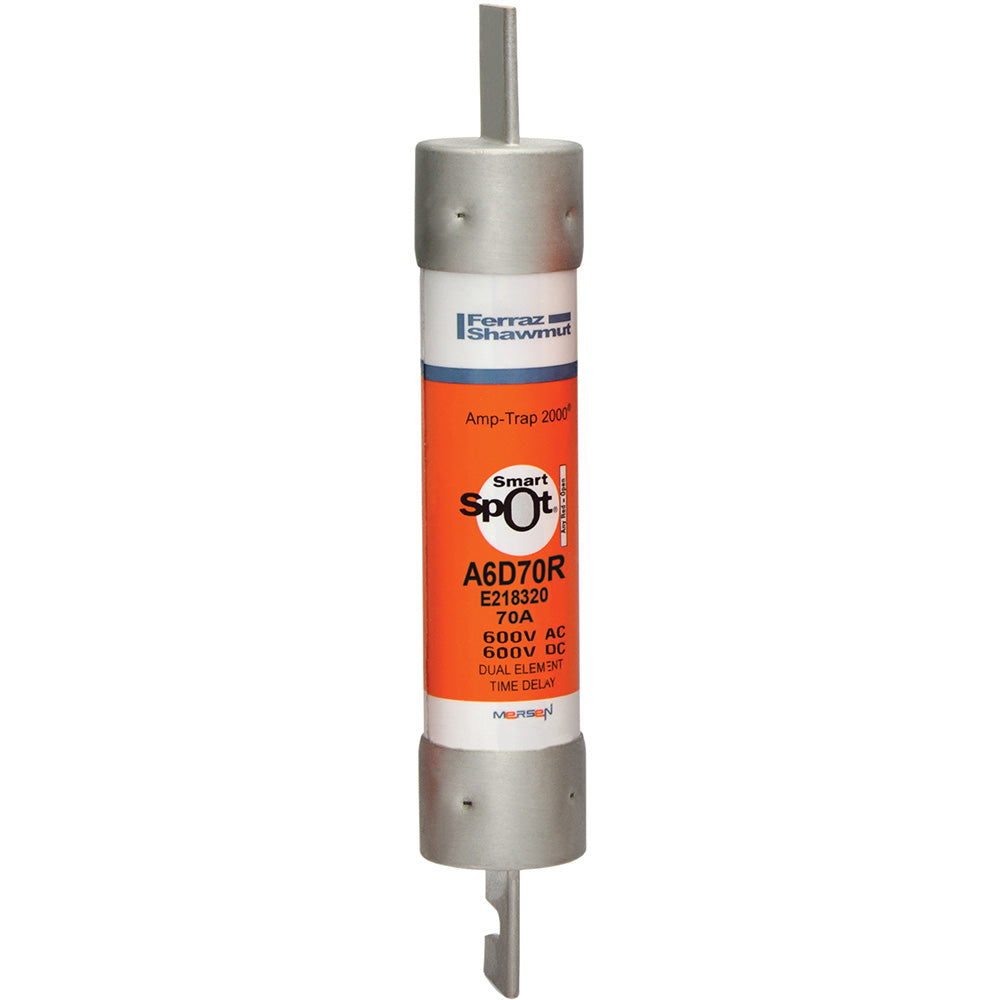

Cutler Hammer A6D70R - RK1 Class Fuse 70A 600V (200kA AIC Rating)

Cutler Hammer A6D70R is a low voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. This RK1 class fuse features a 70A current rating and 600V voltage rating with a 200kA interrupting capacity, providing reliable short-circuit protection. The fuse construction includes a single-barrel design measuring 7-7/8 inches in length with a 1.31-inch diameter and weighs 5 lb, engineered for durable performance in demanding environments. It complies with CSA C22.2 No. 248.12, DC UL 248, and UL 248-12 File E2137 standards, ensuring adherence to industry safety requirements. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Low Voltage Fuse, Current-Limiting, RK1 Class, Single Barrel
• Voltage Rating: 600V AC/DC
• Current Rating: 70A
• Dimensions: 7-7/8 inches length, 1.31 inches diameter
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 5 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001992071
• GTIN: 00782001992071
