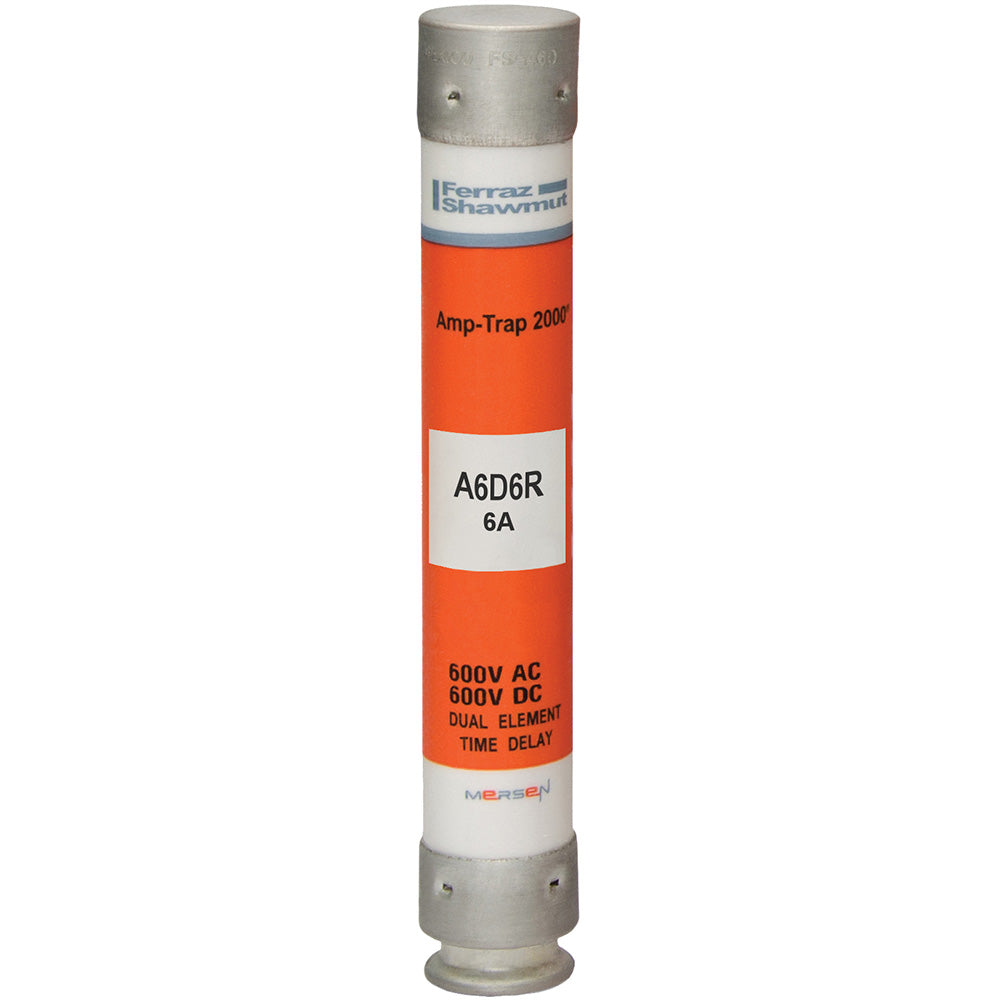

Mersen A6D6R - Low Voltage Fuse RK1 Class (600V, 6A, 200kA AIC)

Mersen A6D6R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 6A current capacity and 200kA interrupting rating at 600V for high-fault protection. The compact 5" x 0.56" cylindrical design with single-barrel construction weighs 0.14 lb and meets CSA C22.2 No. 248.12 and UL 248-12 standards. It is commonly used in motor control centers, switchgear, and panelboards requiring reliable short-circuit protection.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse with RK1 classification
• Voltage Rating: 600V AC/DC
• Current Rating: 6A
• Dimensions: 5" length x 0.56" diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor protection, switchgear, panelboards
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 0.14 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001991753
• GTIN: 00782001991753
