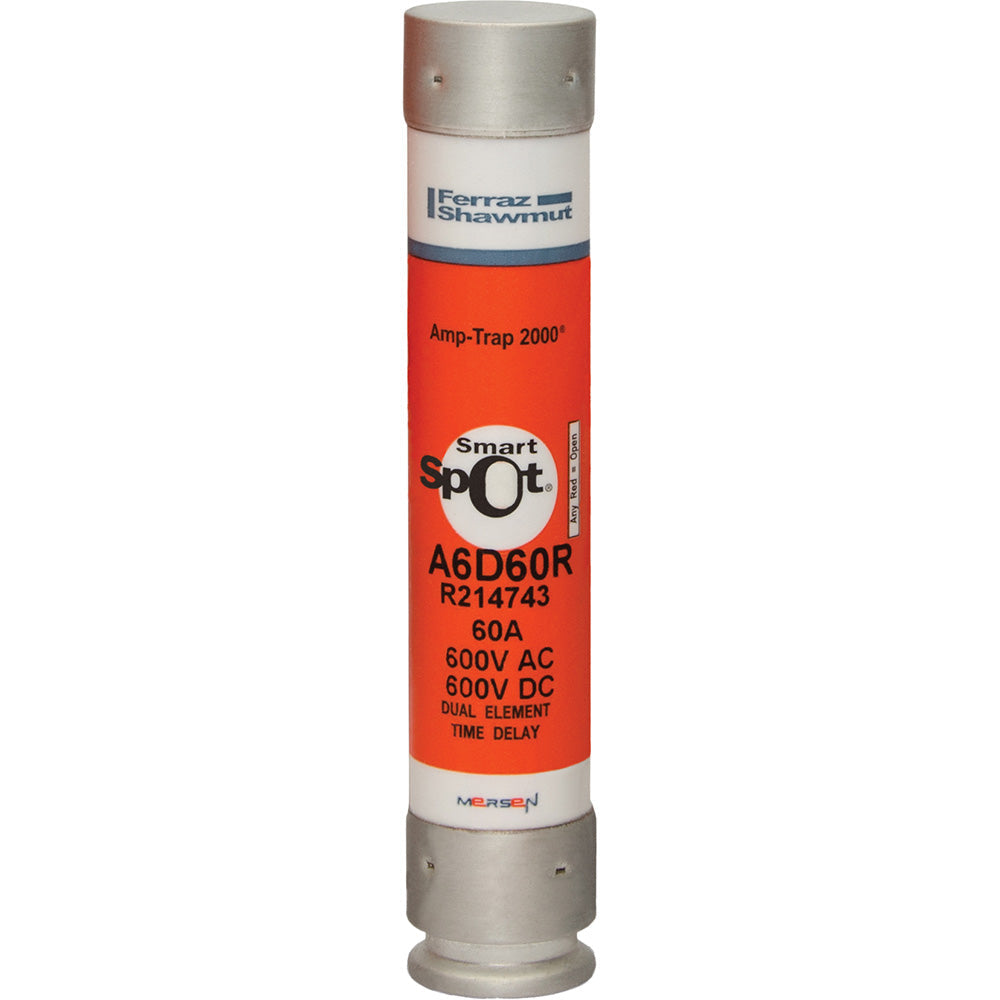

Mersen A6D60R - RK1 Fuse 60A 600V (200kA AIC Current-Limiting)

Mersen A6D60R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC voltage rating and 60A current capacity, with a 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse measures 5-1/2" in length with a 1.06" diameter barrel construction, weighing 5 lb, and meets CSA C22.2 No. 248.12 and UL 248-12 standards. Its Amp-Trap 2000 design provides selective coordination for motor control centers, switchgear, and panelboard applications.

Key Features & Specifications

• Type: Current-limiting RK1 fuse with single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 60A
• Dimensions: 5-1/2" length x 1.06" diameter
• Weight: 5 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial power distribution, motor protection
• Class Rating: RK1
• AIC rating: 200kA@600V
• Certification: UL Listed, CSA Certified
• Country of Origin: Mexico

Product Identification

• UPC: 782001992040
• GTIN: 00782001992040
