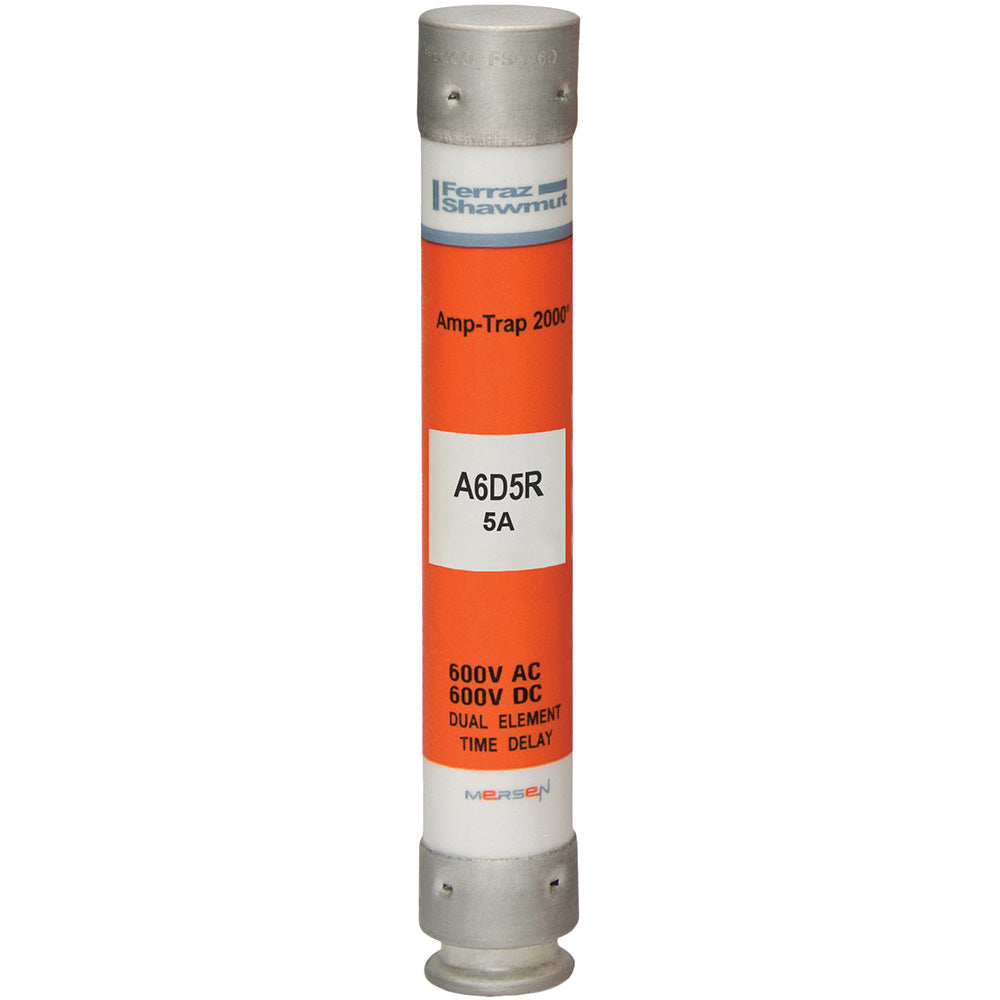

Mersen A6D5R - RK1 Class Fuse 600V/5A (200kA AIC Current-Limiting)

Mersen A6D5R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 5A current capacity and 200kA interrupting rating at 600V for high-fault protection. The compact cylindrical design measures 5" in length with a 0.81" diameter, constructed with a single-barrel configuration weighing 0.14 lb. It meets CSA C22.2 No. 248.12 and UL 248-12 (File E2137) standards for safety compliance, making it suitable for motor control centers, panelboards, and switchgear applications requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse (A6D-R type)
• Voltage Rating: 600V AC/DC
• Current Rating: 5A
• Dimensions: 5" length × 0.81" diameter
• Weight: 0.14 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial motor protection, panelboards, switchgear
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Country of Origin: Mexico

Product Identification

• UPC: 782001991739
• GTIN: 00782001991739
