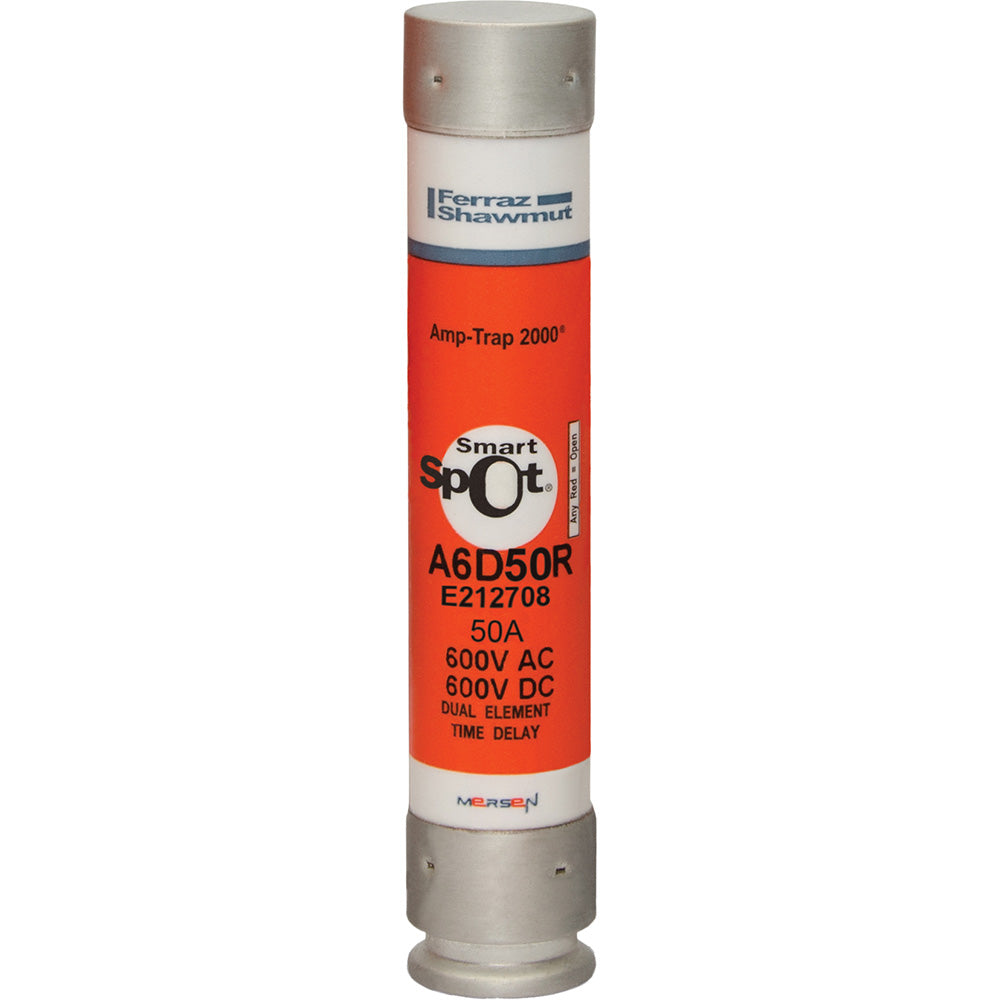

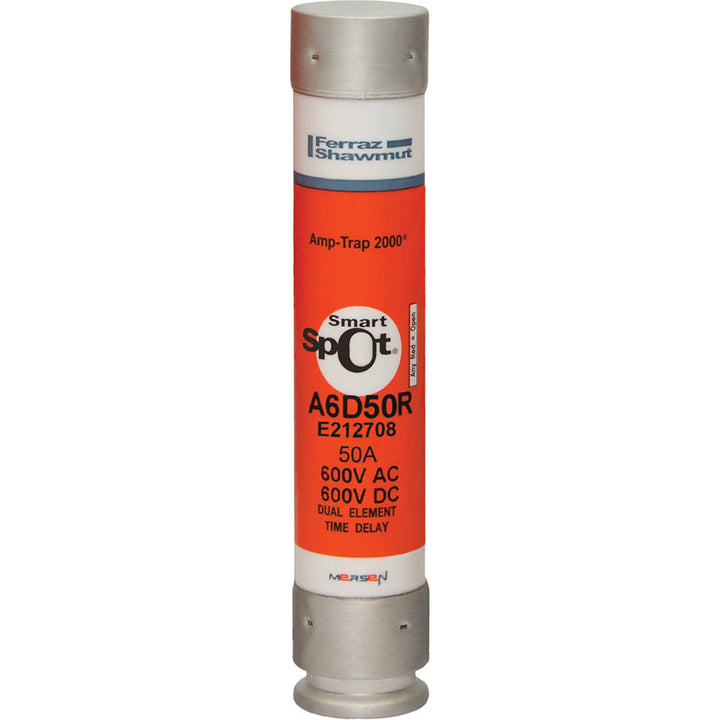

Mersen A6D50R - Low Voltage Fuse 50A 600V (200kA AIC RK1 Class)
Regular price
$37.39
$37.39
Regular price
$1,736.07
$1,736.07
Sale price
$37.39
$37.39
Save $1,698.68
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen A6D50R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC voltage rating and 50A current capacity, with a compact 5-1/2" body length and 1.06" diameter construction. Certified to CSA C22.2 No. 248.12 and UL 248 standards, it delivers 200kA interrupting capacity at 600V for reliable short-circuit protection. The single-barrel Amp-Trap 2000 series fuse is engineered for motor branch circuits, transformers, and feeder protection applications requiring high-performance fault current interruption.
Key Features & Specifications
Key Features & Specifications
- Type: Current-limiting low-voltage fuse (A6D-R)
- Voltage Rating: 600V AC/DC
- Current Rating: 50A
- Dimensions: 5-1/2" length x 1.06" diameter
- Weight: 5 lb
- Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
- Applications: Motor circuits, transformers, feeder protection
- Class Rating: RK1
- Barrels: 1
- AIC rating: 200kA@600V
- Country of Origin: Mexico
- UPC: 782001992033
- GTIN: 00782001992033
