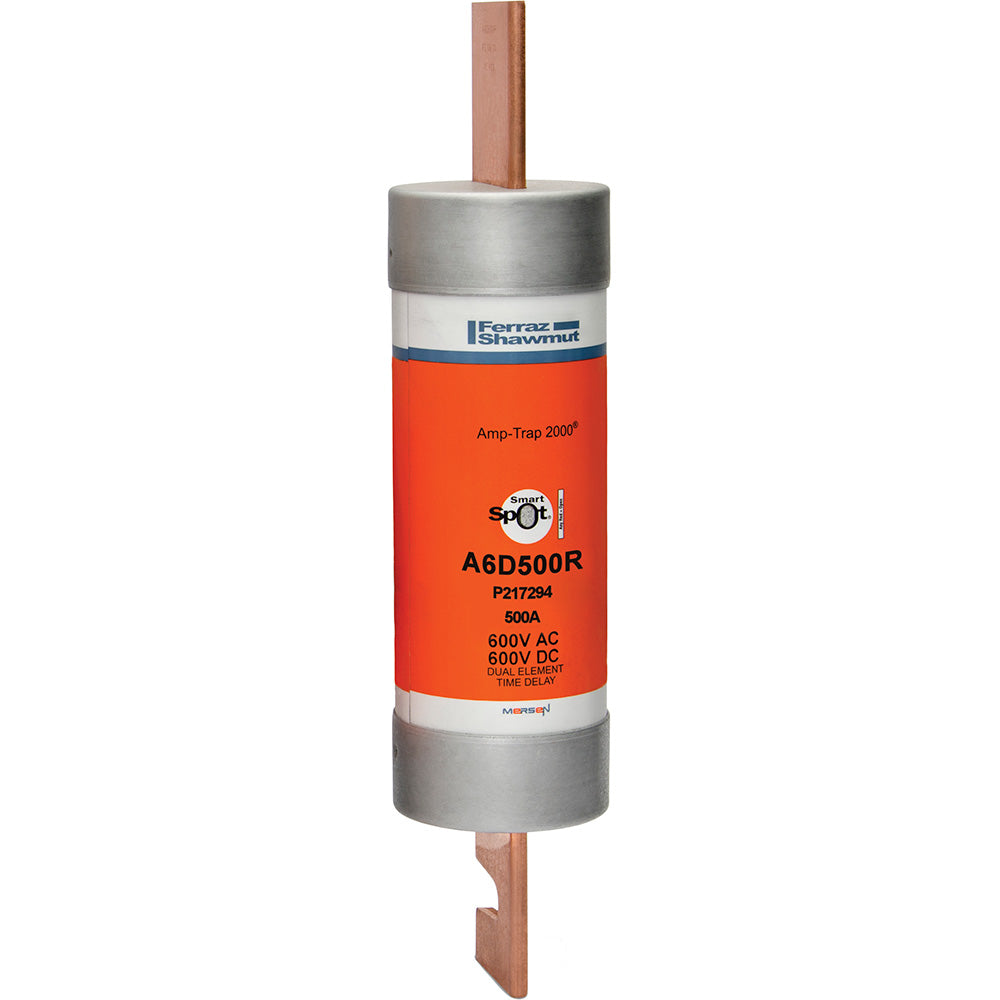

Mersen A6D500R - RK1 Class Fuse 500A@600V (200kA AIC)

Mersen A6D500R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC rating and 500A current capacity, with a 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel design measures 3.13 inches in diameter and weighs 4 lb, constructed to meet stringent industry standards for electrical safety. Compliant with UL/CSA requirements, it's engineered for use in motor control centers, switchgear, and other high-current applications where selective coordination is critical.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse (A6D-R type)
• Voltage Rating: 600V AC
• Current Rating: 500A
• Dimensions: 3.13" diameter
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection, switchgear
• Class Rating: RK1
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 4 lb

Product Identification

• UPC: 782001992293
• GTIN: 00782001992293
