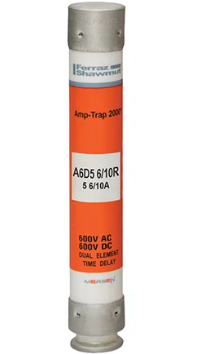

Cutler Hammer A6D5-6/10R - Class RK1 Fuse 5A (200kA AIC @600V)

The Cutler Hammer A6D5-6/10R is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection for industrial electrical systems. It features a 5A current rating and a 600V AC voltage rating, capable of interrupting faults up to 200kA. The fuse is constructed as a single-barrel unit with a 5-inch body length and a 0.81-inch diameter, built to meet rigorous industry standards. It is certified to CSA C22.2 No. 248.12 and UL 248-12, ensuring reliable performance in demanding environments. This fuse is typically applied in motor control centers, panelboards, and switchboards within the Amp-Trap 2000 family to protect feeders and branch circuits.

Key Features & Specifications

• Type: Class RK1, A6D-R, current-limiting, low-voltage fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 5" Length, 0.81" Diameter
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Motor control centers, panelboards, switchboards, feeder and branch circuit protection
• AIC rating: 200kA @ 600V
• Family: Amp-Trap 2000
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001991746
• GTIN: 00782001991746
