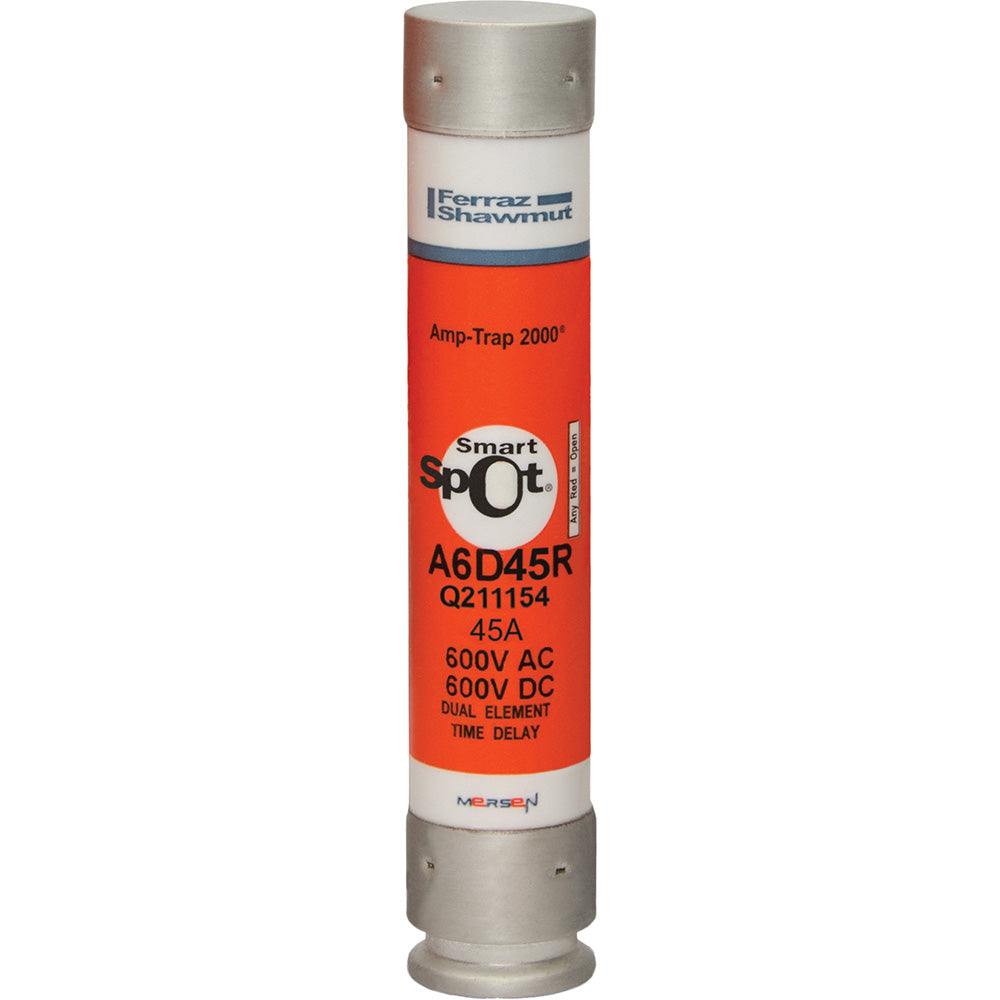

Mersen A6D45R - RK1 Class Fuse 600V/45A (200kA AIC Rating)

Mersen A6D45R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 45A current capacity and 200kA interrupting rating at 600V for robust short-circuit protection. The 5-1/2" long fuse body with 1.06" diameter barrel construction meets CSA C22.2 No. 248.12 and UL 248-12 standards for safety compliance. Its Amp-Trap 2000 series design provides reliable overcurrent protection for motor circuits, transformers, and power distribution equipment.

Key Features & Specifications

• Type: A6D-R current-limiting fuse with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 45A
• Dimensions: 5-1/2" length x 1.06" diameter
• Weight: 0.34 lb
• Standards: CSA C22.2 No. 248.12, UL 248, UL 248-12 File E2137
• Applications: Motor protection, transformer circuits, power distribution panels
• Class Rating: RK1
• AIC rating: 200kA@600V
• Certification: CSA, UL listed
• Country of Origin: Mexico

Product Identification

• UPC: 782001992026
• GTIN: 00782001992026
