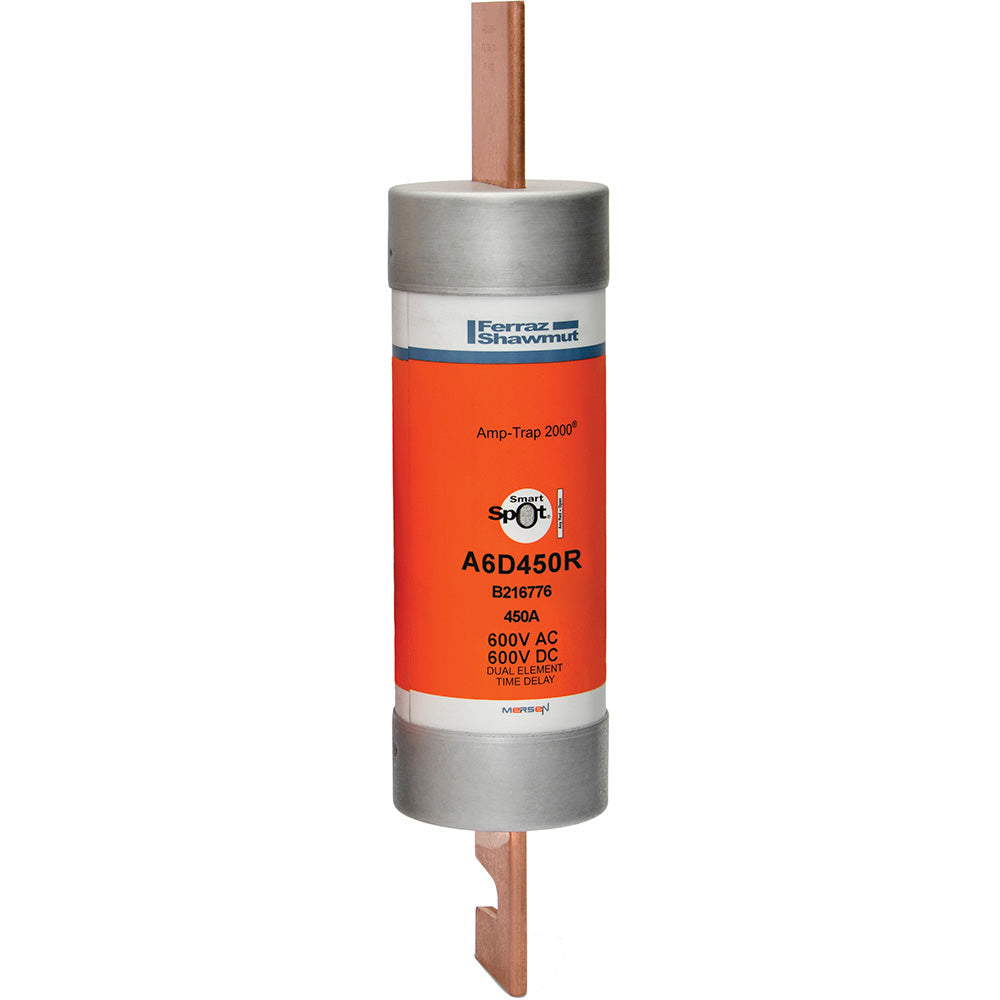

Mersen A6D450R - RK1 Class Fuse 600V/450A (200kA AIC Rating)

Mersen A6D450R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC voltage rating and 450A current rating with a high interrupting capacity of 200kA at 600V. The fuse measures 13-3/8" in length with a 3.13" diameter barrel construction, weighing 3 lb, and meets CSA C22.2 No. 248.12 and UL 248-12 safety standards. Its current-limiting design provides reliable protection for motor control centers, switchgear, and industrial power panels where high fault currents may occur.

Key Features & Specifications

• Type: A6D-R current-limiting fuse (RK1 class)
• Voltage Rating: 600V AC/DC
• Current Rating: 450A
• Dimensions: 13-3/8" length x 3.13" diameter
• Weight: 3 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial power distribution, motor control centers, switchgear
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: RK1
• Country of Origin: Mexico

Product Identification

• UPC: 782001992286
• GTIN: 00782001992286
