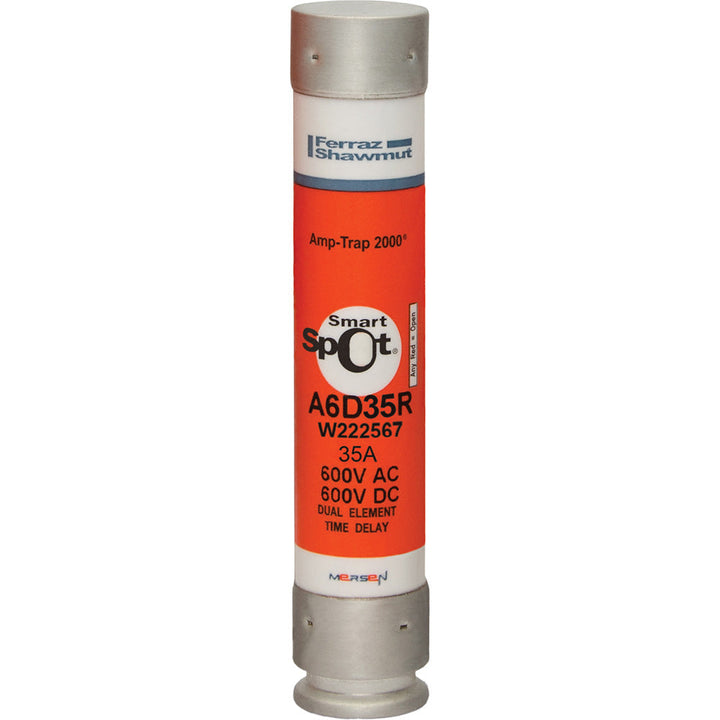

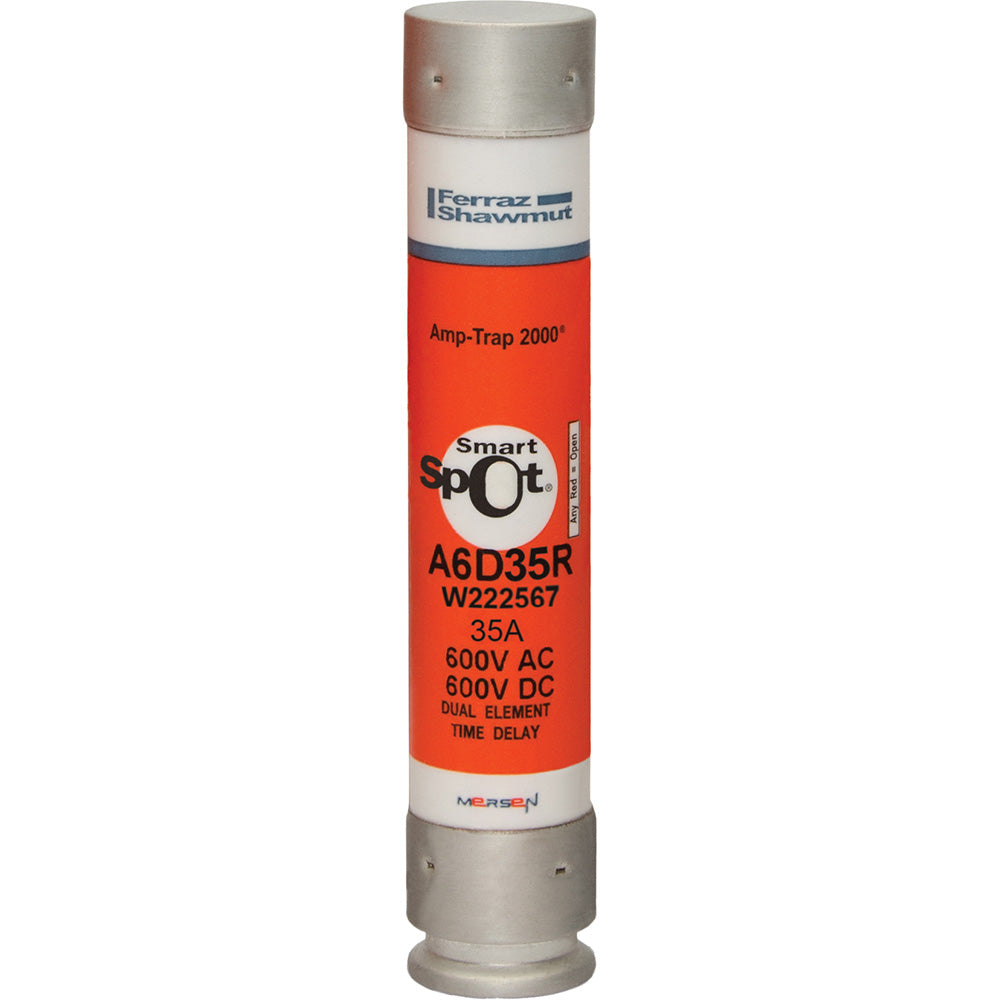

Cutler Hammer A6D35R - Class RK1 Fuse 35A 600V (200kA AIC Rating)

The Cutler Hammer A6D35R is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection in industrial electrical systems. It features a 35A current rating and 600V AC/DC voltage rating with a 200kA interrupting capacity at 600V for reliable fault protection. The fuse construction includes a single-barrel design measuring 5-1/2" in length with a 1.06" diameter and weighs 5 lb, built to withstand demanding industrial environments. It complies with CSA C22.2 No. 248.12, DC UL 248, and UL 248-12 standards (File E2137) for safety and performance verification. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-interrupting capacity protection is required.

Key Features & Specifications

• Type: Class RK1 current-limiting fuse, single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 35A
• Dimensions: 5-1/2" length, 1.06" diameter
• Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 5 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001992002
• GTIN: 00782001992002
