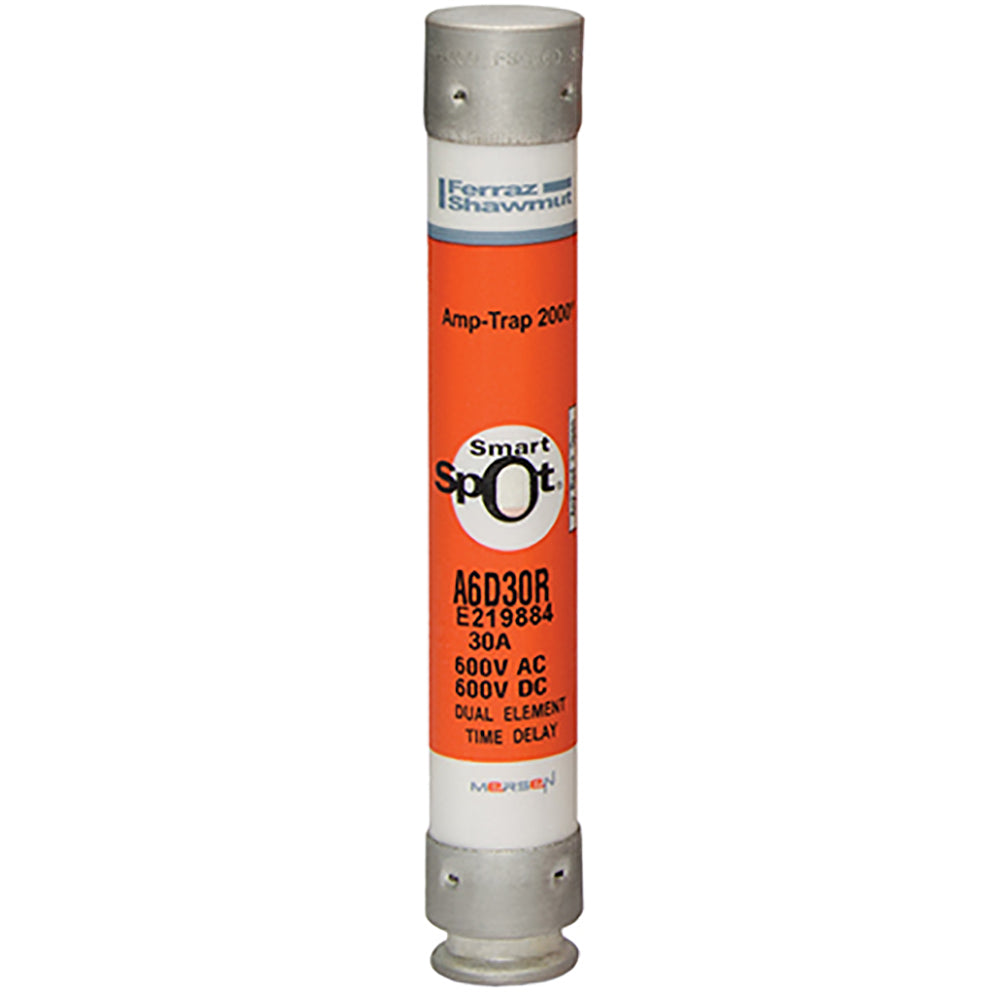

Mersen A6D30R - RK1 Class Fuse 30A 600V (200kA AIC Current-Limiting)
Regular price
$21.47
$21.47
Regular price
$1,010.09
$1,010.09
Sale price
$21.47
$21.47
Save $988.62
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen A6D30R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC voltage rating and 30A current capacity, with a 200kA interrupting rating at 600V for high-fault protection. The 5" long fuse body has a 0.81" diameter and features a single-barrel construction with current-limiting characteristics to protect against short circuits. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), it is commonly used in motor control centers, switchgear, and panelboards requiring reliable overcurrent protection.
Key Features & Specifications
Key Features & Specifications
- Type: Amp-Trap 2000 series current-limiting fuse (A6D-R type)
- Voltage Rating: 600V AC/DC
- Current Rating: 30A
- Dimensions: 5" length x 0.81" diameter
- Weight: 5 lb
- Class Rating: RK1
- AIC Rating: 200kA @ 600V
- Certification: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
- Barrels: 1
- Country of Origin: Mexico
- UPC: 782001991869
- GTIN: 00782001991869
