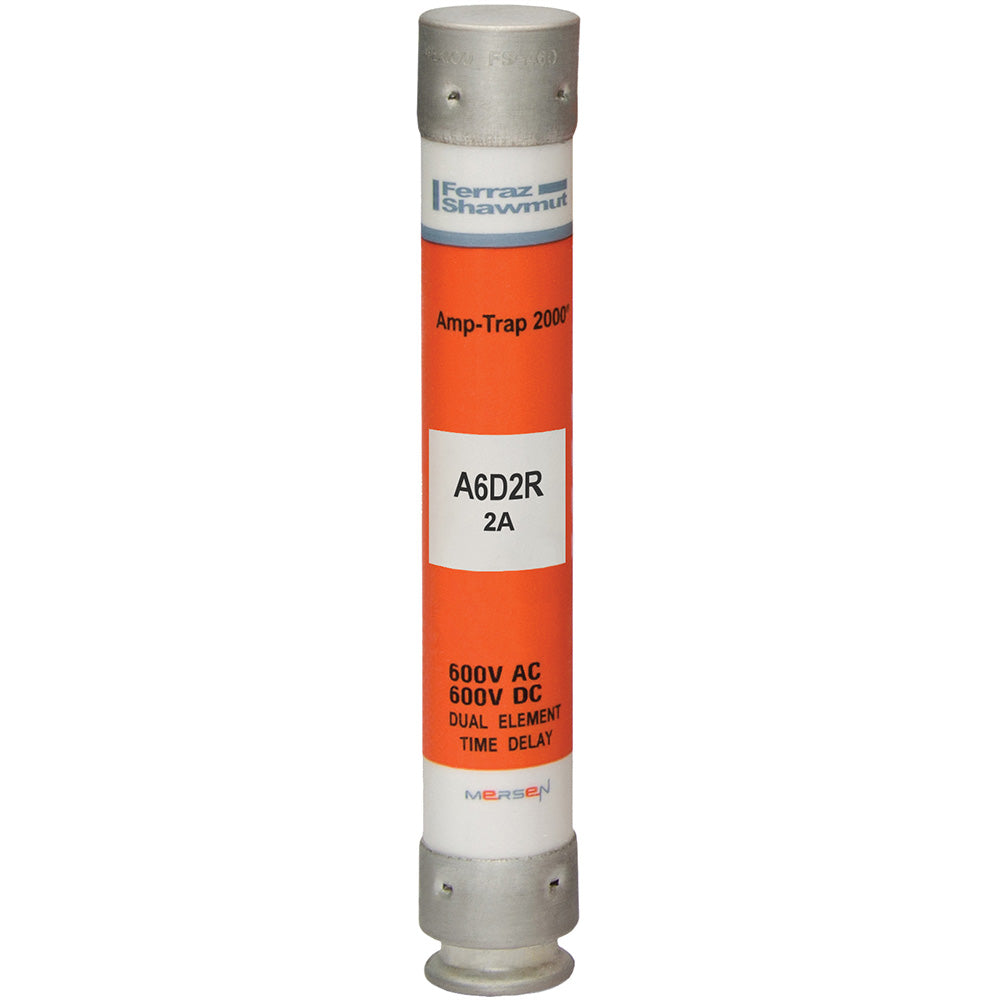

Mersen A6D2R - RK1 Class Fuse 600V/2A (200kA AIC Current-Limiting)

Mersen A6D2R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 2A current rating with a 200kA interrupting capacity at 600V, housed in a compact 5" long, 0.81" diameter RK1-class barrel construction. The fuse meets CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137) for reliable overcurrent protection in motor control centers, switchgear, and panelboards. Its current-limiting design provides fast-acting protection against short circuits and overloads in commercial and industrial power distribution applications.

Key Features & Specifications

• Type: A6D-R current-limiting fuse with RK1 class rating
• Voltage: 600V AC/DC
• Current: 2A
• Dimensions: 5" length x 0.81" diameter
• Weight: 0.14 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• AIC rating: 200kA@600V
• Construction: Single barrel design
• Applications: Motor controls, switchgear, panelboards
• Country of Origin: Mexico

Product Identification

• UPC: 782001991647
• GTIN: 00782001991647
