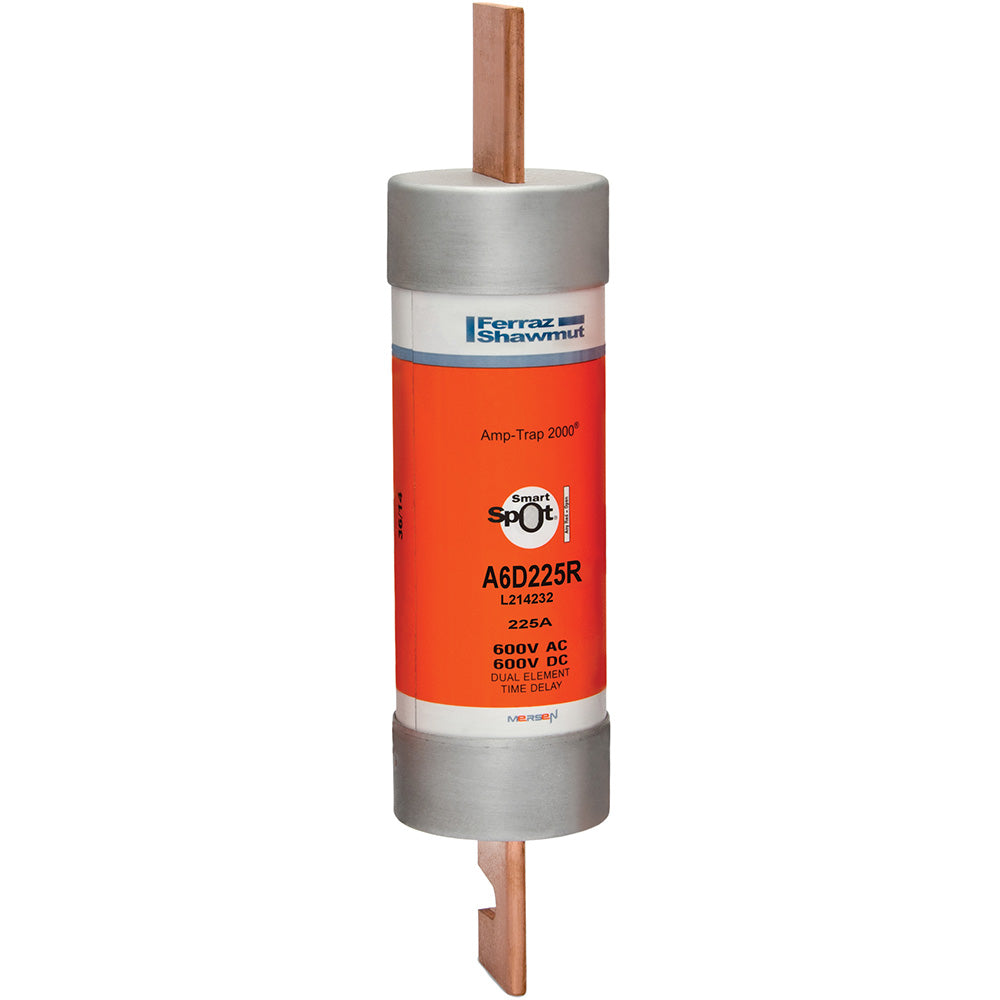

Cutler Hammer A6D225R - Class RK1 Fuse 225A 600V (200kA AIC Rating)
Regular price
$221.98
$221.98
Regular price
$1,433.58
$1,433.58
Sale price
$221.98
$221.98
Save $1,211.60
/
- Low stock - 6 items left
- Backordered, shipping soon
The Cutler Hammer A6D225R is a Class RK1 low-voltage current-limiting fuse designed to provide reliable overcurrent protection in industrial electrical systems. It features a 225A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600V AC/DC for robust fault protection. The fuse construction includes a single-barrel design measuring 2.56 inches in diameter with compact physical dimensions for space-efficient panel mounting. This unit complies with CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), ensuring adherence to industry safety requirements. Typical applications include motor circuit protection, feeder circuit protection, and industrial power distribution systems where high-interrupting capacity and current limitation are critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Class RK1 current-limiting fuse, single barrel design
- Voltage Rating: 600V AC/DC
- Current Rating: 225A
- Dimensions: 2.56" diameter
- Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
- Applications: Motor circuit protection, feeder circuits, industrial power distribution
- AIC rating: 200kA@600V
- Class Rating: RK1
- Barrels: 1
- Family: Amp-Trap 2000
- Country of Origin: Mexico
- Weight: 2 lb
Product Identification
- UPC: 782001992217
- GTIN: 00782001992217
