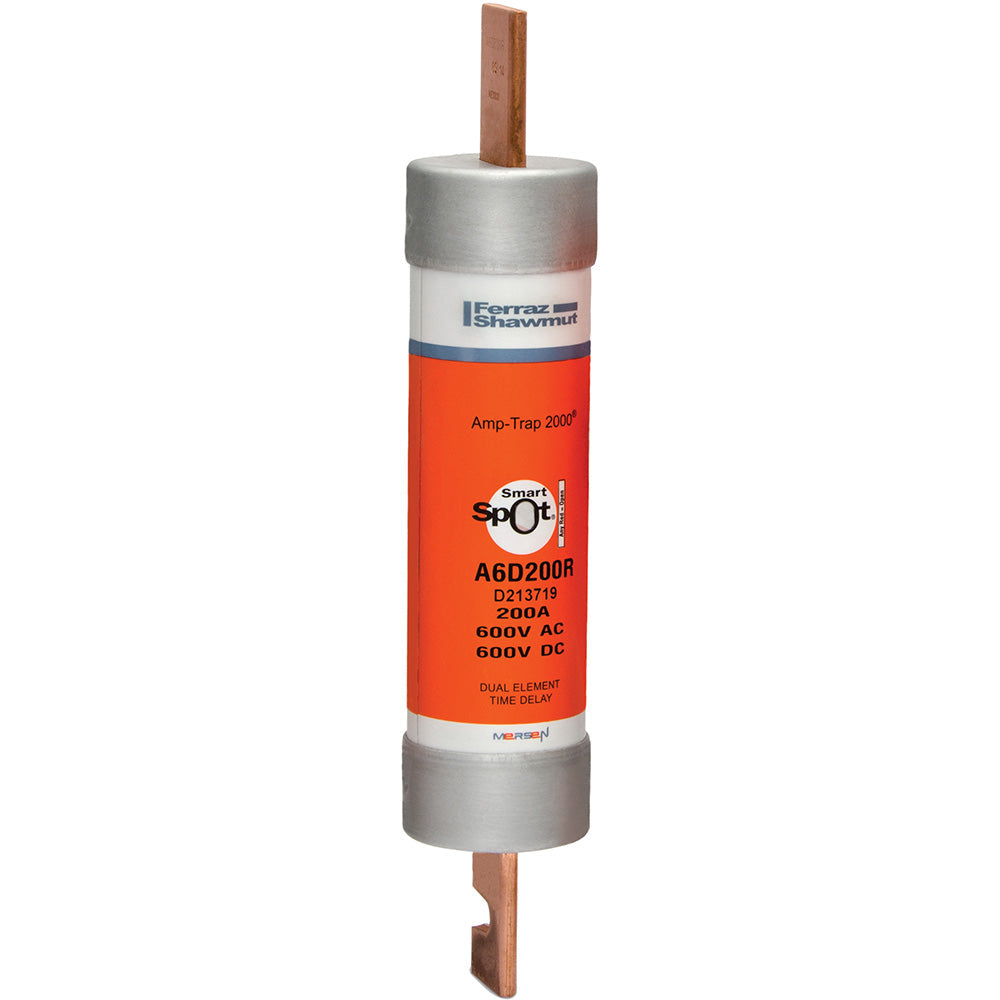

Mersen A6D200R - RK1 Class Fuse 200A 600V (200kA AIC)

Mersen A6D200R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC voltage rating and 200A current rating, with a 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse measures 9-5/8 inches in length with a 1.81-inch diameter, constructed as a single-barrel design with current-limiting characteristics to protect downstream equipment. It complies with CSA C22.2 No. 248.12, UL 248-12 (File E2137), and DC UL 248 standards, making it suitable for motor branch circuits, transformers, and panelboard protection in commercial and industrial facilities.

Key Features & Specifications

• Type: A6D-R current-limiting fuse, RK1 class
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 9-5/8" length x 1.81" diameter
• Weight: 1 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137), DC UL 248
• Applications: Motor circuits, transformers, panelboards
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Certification: CSA, UL listed

Product Identification

• UPC: 782001992187
• GTIN: 00782001992187
