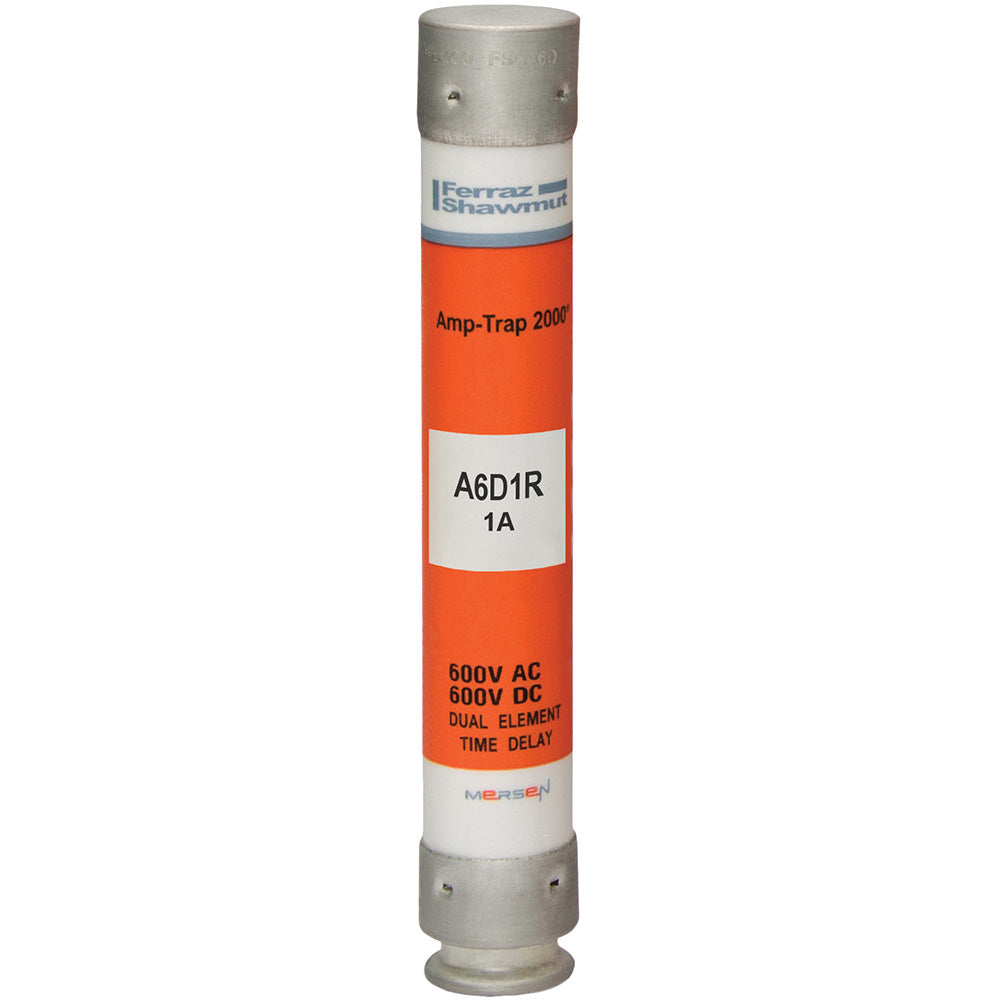

Mersen A6D1R - RK1 Time-Delay Fuse 1A 600V (200kA AIC)

Mersen A6D1R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 1A current capacity and 200kA interrupting rating at 600V, housed in a compact 5" x 0.81" cylindrical design weighing 0.14 lb. It meets CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137) for reliable overcurrent protection in motor control centers, panelboards, and industrial power distribution equipment. The single-barrel construction with time-delay characteristics provides selective coordination while preventing nuisance tripping.

Key Features & Specifications

• Type: Amp-Trap 2000 series RK1 time-delay current-limiting fuse
• Voltage Rating: 600V AC/DC
• Current Rating: 1A
• Dimensions: 5" length x 0.81" diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor protection, panelboards, industrial power distribution
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 0.14 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001991586
• GTIN: 00782001991586
