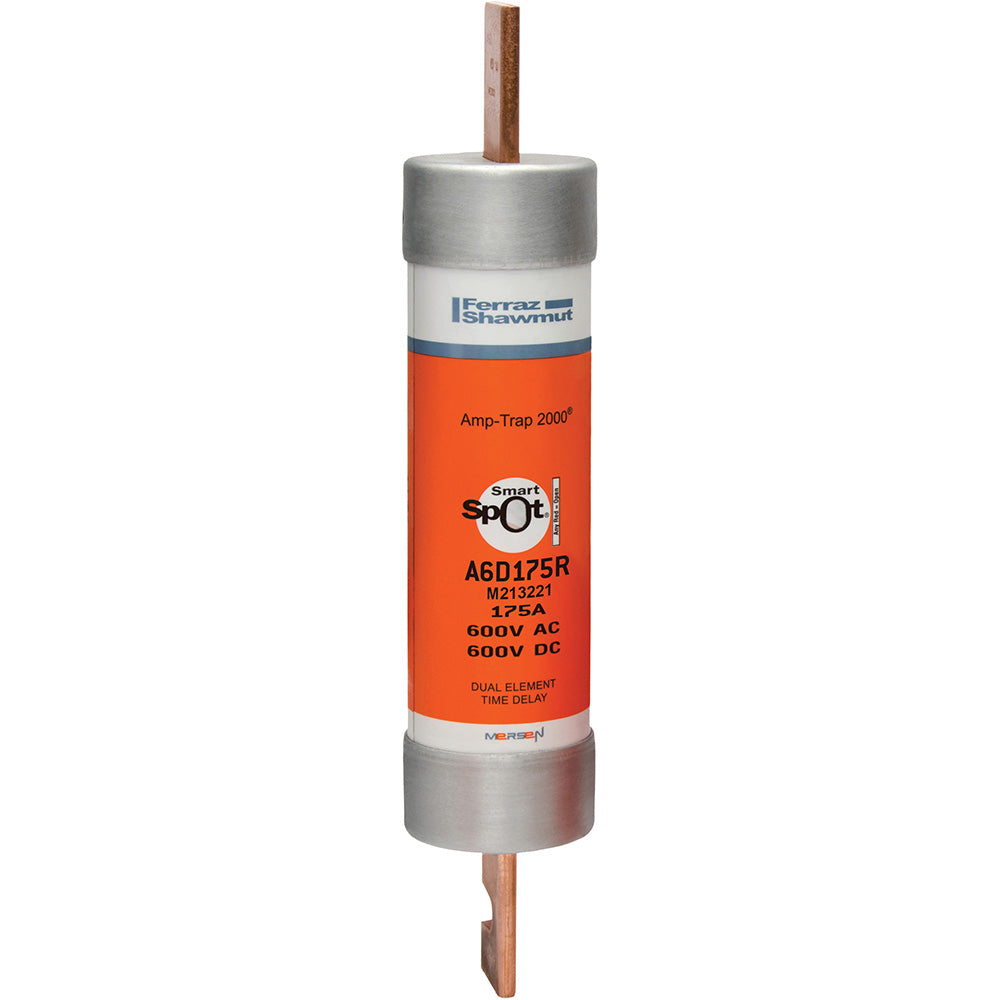

Mersen A6D175R - RK1 Class Fuse 175A 600V (200kA AIC)

Mersen A6D175R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC rating with a 175A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The 1.81-inch diameter, 9-5/8-inch long fuse body contains a single barrel construction with time-delay characteristics for motor circuit applications. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards, it meets stringent safety requirements for use in panelboards, switchgear, and motor control centers.

Key Features & Specifications

• Type: A6D-R time-delay current-limiting fuse with RK1 classification
• Voltage Rating: 600V AC/DC
• Current Rating: 175A
• Dimensions: 9-5/8" length x 1.81" diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial power distribution, motor circuits, panelboards
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001992170
• GTIN: 00782001992170
