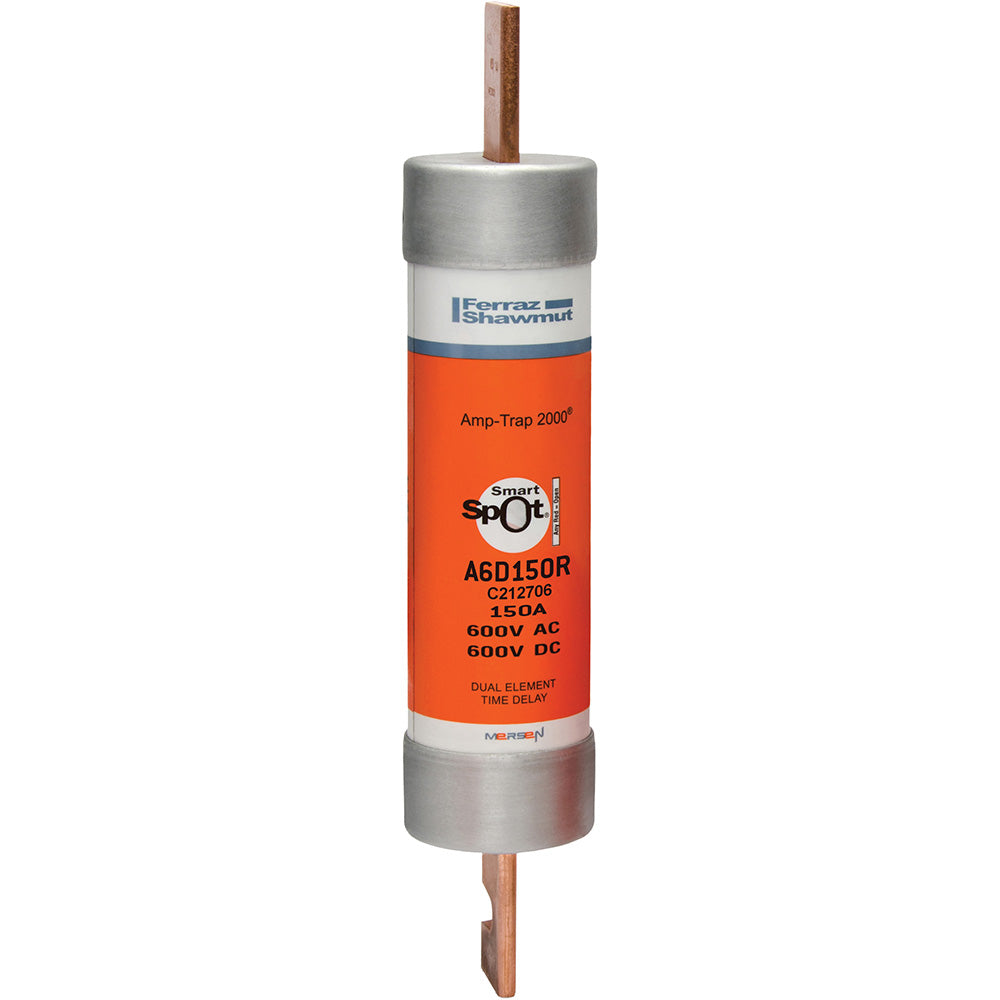

Mersen A6D150R - RK1 Class Fuse 600V/150A (200kA AIC Rating)

Mersen A6D150R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC/DC rating with a 150A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse measures 9-5/8 inches in length with a 1.81-inch diameter, constructed as a single-barrel design weighing 2 lb. It complies with CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), making it suitable for motor branch circuits, transformers, and feeder protection in demanding environments.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse (A6D-R)
• Voltage Rating: 600V AC/DC
• Current Rating: 150A
• Dimensions: 9-5/8" length x 1.81" diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor circuits, transformers, industrial feeders
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 2 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001992163
• GTIN: 00782001992163
