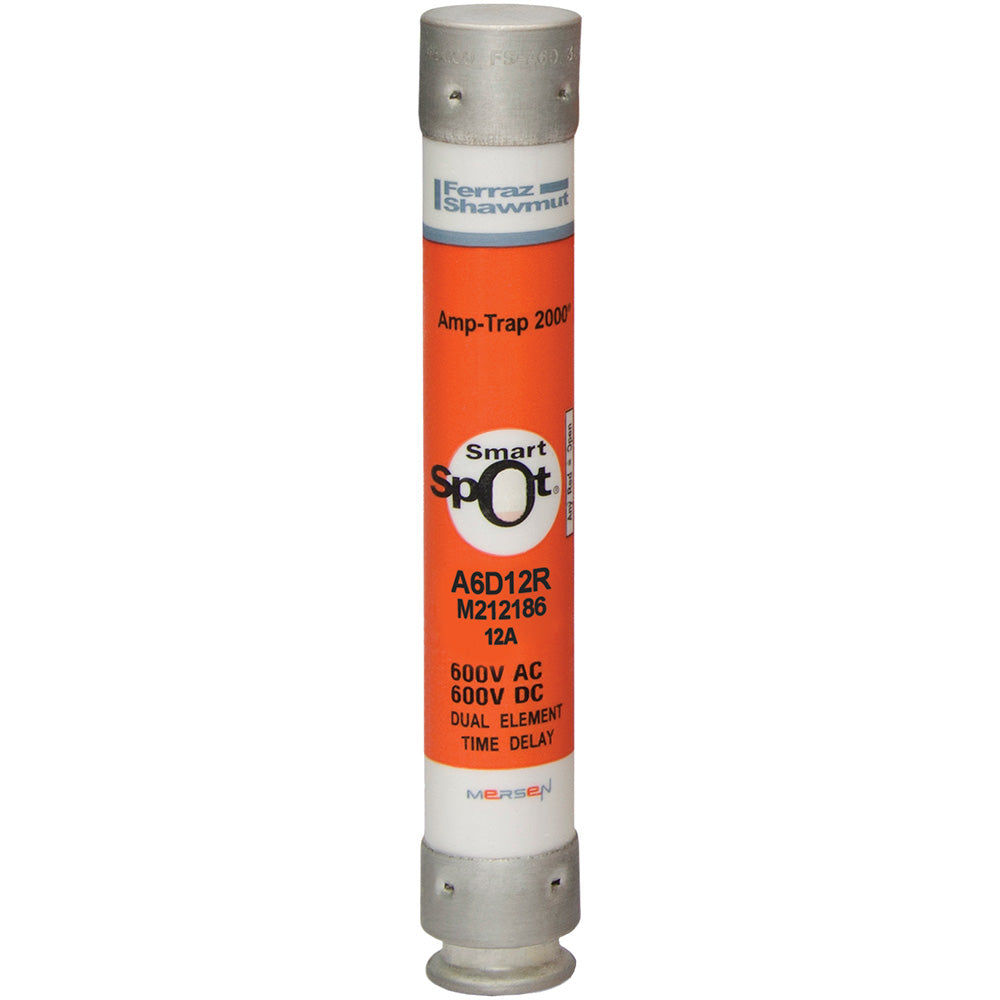

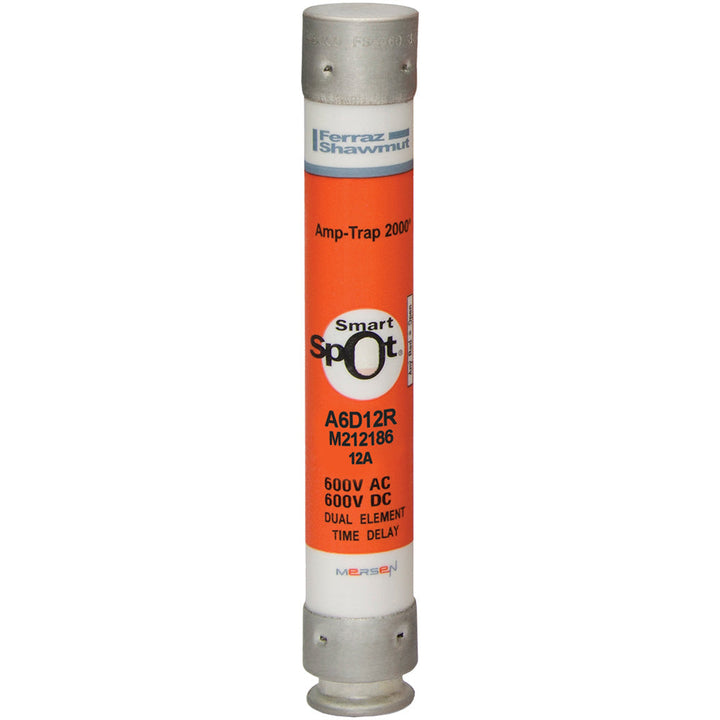

Mersen A6D12R - A6D-R Fuse 12A 600V (200kA AIC RK1 Class)

Mersen A6D12R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 12A current rating, it features an RK1 class rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse measures 5" in length with a 0.81" diameter and 0.14 lb weight, constructed with a single-barrel design for compact installation. It meets CSA C22.2 No. 248.12, UL 248, and UL 248-12 standards (File E2137), making it suitable for motor control centers, switchgear, and power distribution panels requiring high-performance protection.

Key Features & Specifications

• Type: A6D-R current-limiting fuse (RK1 class)
• Voltage Rating: 600V AC/DC
• Current Rating: 12A
• Dimensions: 5" length x 0.81" diameter
• Weight: 0.14 lb
• Standards: CSA C22.2 No. 248.12, UL 248, UL 248-12 (File E2137)
• AIC Rating: 200kA@600V
• Barrels: 1
• Applications: Motor controls, switchgear, power distribution

Product Identification

• UPC: 782001991814
• GTIN: 00782001991814
