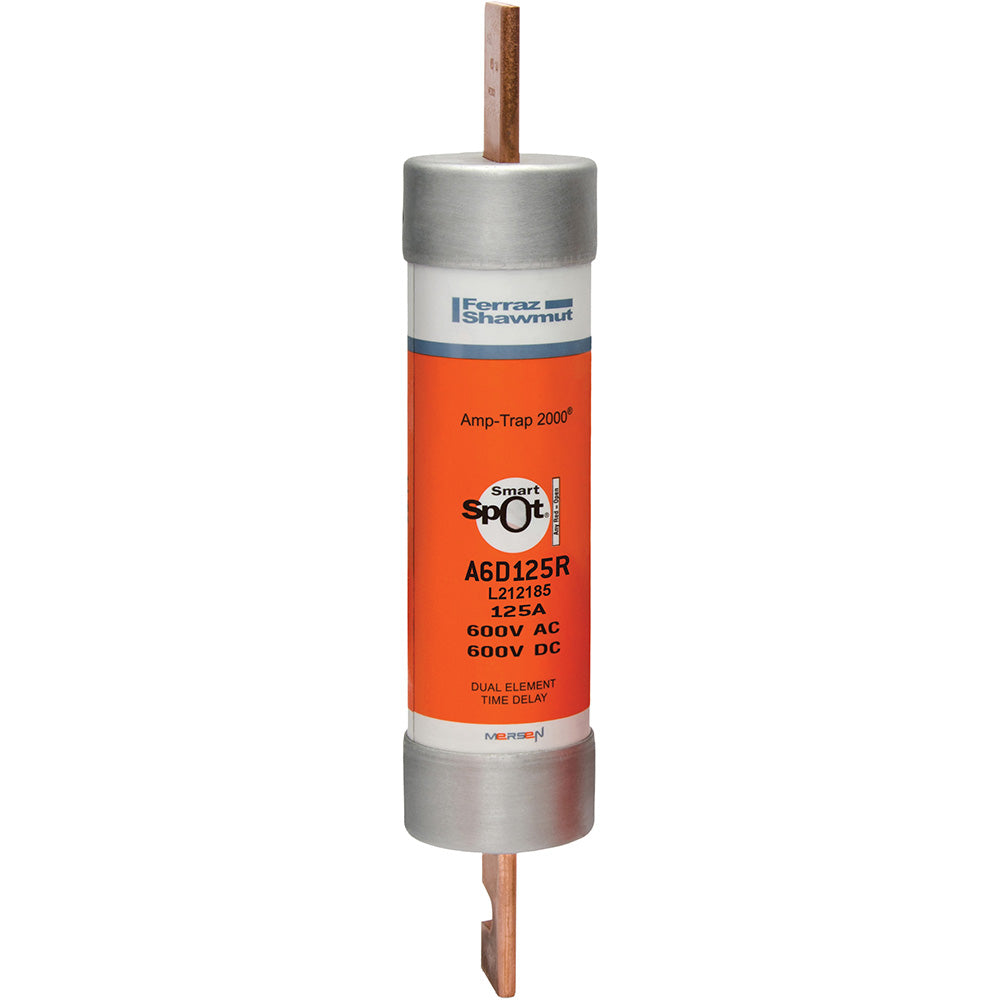

Mersen A6D125R - RK1 Class Fuse 125A 600V (200kA AIC)

Mersen A6D125R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 600V AC/DC rating with a 125A current capacity and 200kA interrupting rating, housed in a durable 1.81-inch diameter barrel construction measuring 9-5/8 inches in length. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), it provides reliable short-circuit protection for motor control centers, switchgear, and panelboards in demanding environments.

Key Features & Specifications

• Type: Amp-Trap 2000 series current-limiting fuse (A6D-R type)
• Voltage Rating: 600V AC/DC
• Current Rating: 125A
• Dimensions: 9-5/8" length x 1.81" diameter
• Weight: 1 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor protection, switchgear, industrial panels
• Class Rating: RK1
• AIC rating: 200kA@600V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001992156
• GTIN: 00782001992156
