Mersen A6D10R - RK1 Class Fuse 600V/10A (200kA AIC Current-Limiting)
Regular price
$27.70
$27.70
Regular price
$1,146.21
$1,146.21
Sale price
$27.70
$27.70
Save $1,118.51
/
- In stock, ready to ship
- Backordered, shipping soon

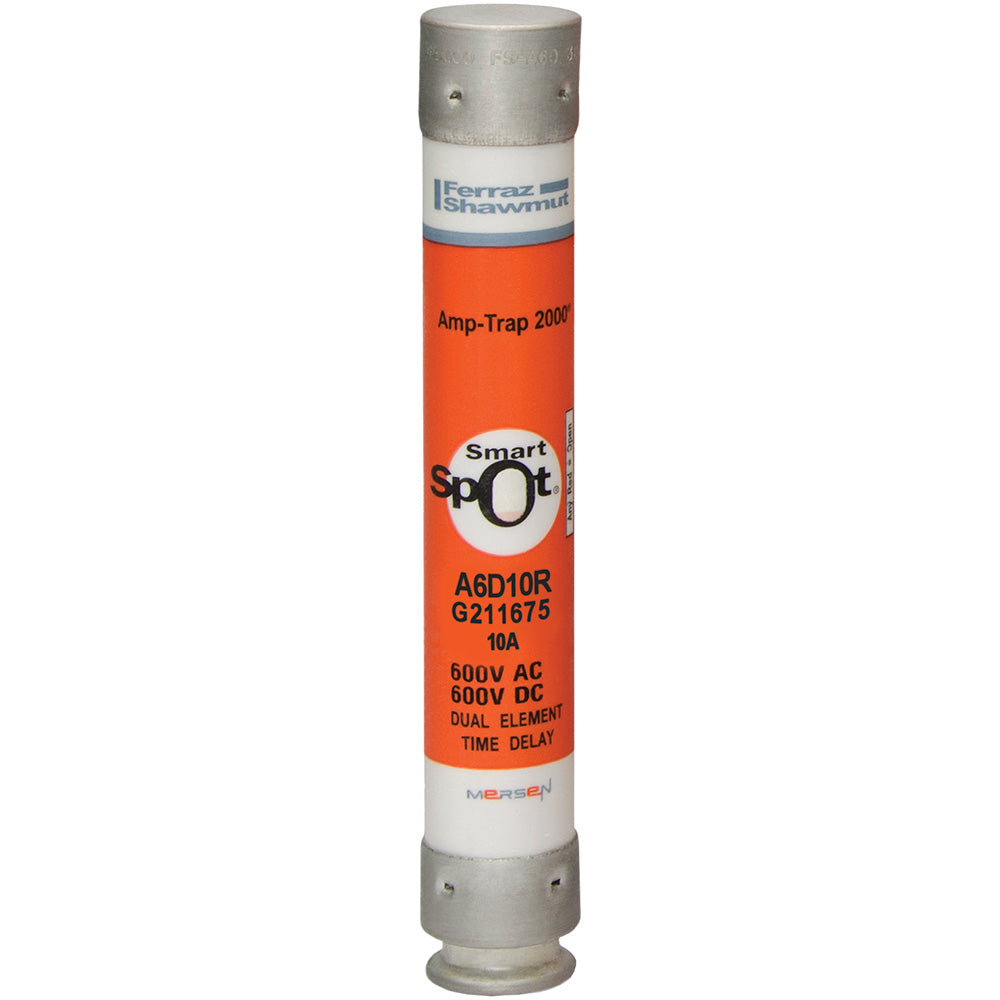

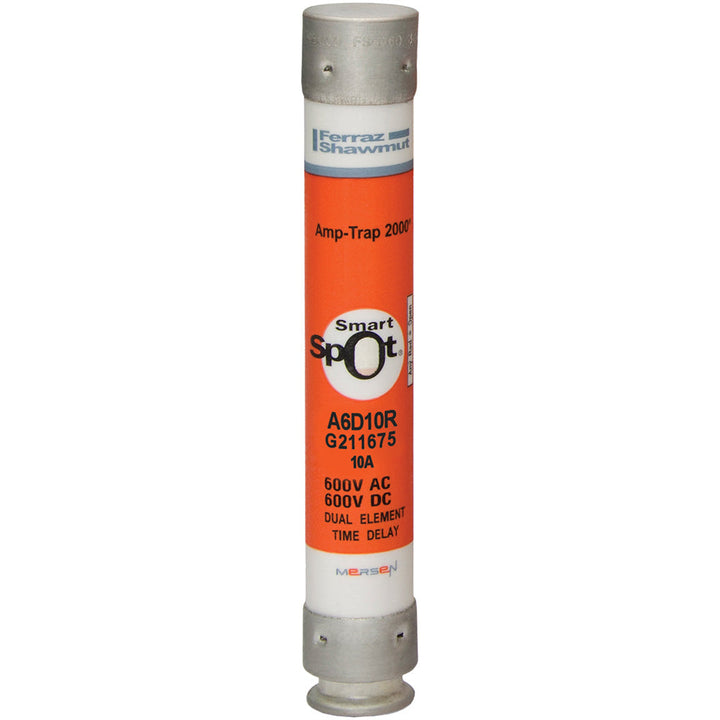

Mersen A6D10R is a low-voltage current-limiting fuse from the Amp-Trap 2000 series, designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC applications with a 10A current capacity, it features an RK1 class rating and delivers 200kA interrupting capacity at rated voltage. The fuse measures 5" in length with a 0.81" diameter barrel construction, weighing 5 lb, and meets CSA C22.2 No. 248.12, UL 248, and UL 248-12 standards for safety compliance. Its current-limiting design makes it suitable for protecting transformers, motor circuits, and feeder applications where high fault currents may occur.
Key Features & Specifications
Key Features & Specifications
- Type: A6D-R current-limiting fuse with single barrel design
- Voltage Rating: 600V AC/DC
- Current Rating: 10A
- Dimensions: 5" length x 0.81" diameter
- Standards: CSA C22.2 No. 248.12, UL 248, UL 248-12 (File E2137)
- Applications: Transformer protection, motor circuits, industrial feeders
- Class Rating: RK1
- AIC rating: 200kA@600V
- Weight: 5 lb
- Country of Origin: Mexico
- UPC: 782001991807
- GTIN: 00782001991807
