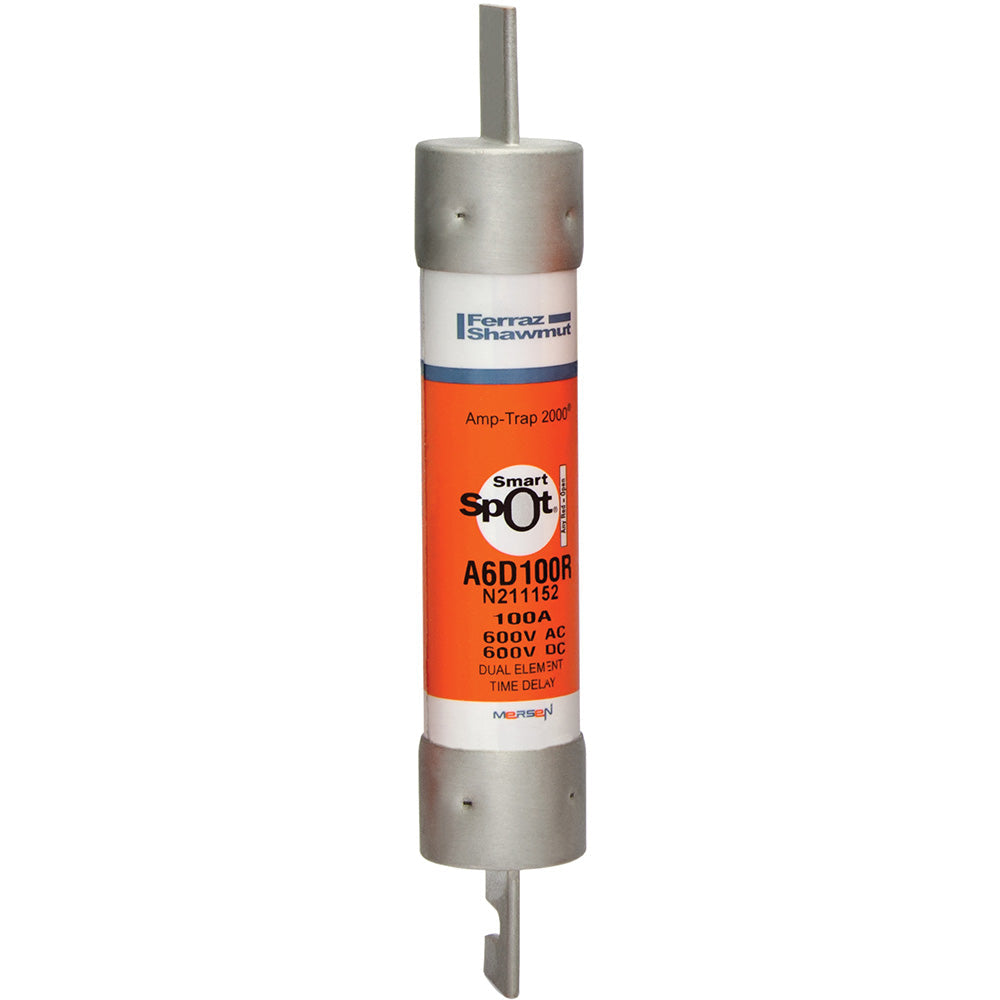

Cutler Hammer A6D100R - Class RK1 Fuse 100A 600V (200kA AIC Rating)

The Cutler Hammer A6D100R is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection in industrial electrical systems. It features a 100A current rating and 600V voltage rating with a high 200kA interrupting capacity, ensuring reliable circuit protection under fault conditions. The fuse construction includes a single-barrel design measuring 7-7/8 inches in length with a 1.31-inch diameter and weighs 5 pounds, built for durable performance in demanding environments. This Amp-Trap 2000 series fuse complies with CSA C22.2 No. 248.12 and UL 248-12 standards, meeting rigorous safety requirements for industrial applications. Typical uses include motor branch circuits, feeder circuits, and service entrance equipment where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Class RK1 current-limiting fuse, single-barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 7-7/8 inches length, 1.31 inches diameter
• Weight: 5 lb
• Standards: CSA C22.2 No. 248.12, UL 248, UL 248-12 File E2137
• Applications: Motor branch circuits, feeder circuits, service entrance equipment
• AIC rating: 200kA@600V
• Family: Amp-Trap 2000
• Class Rating: RK1
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001992118
• GTIN: 00782001992118
