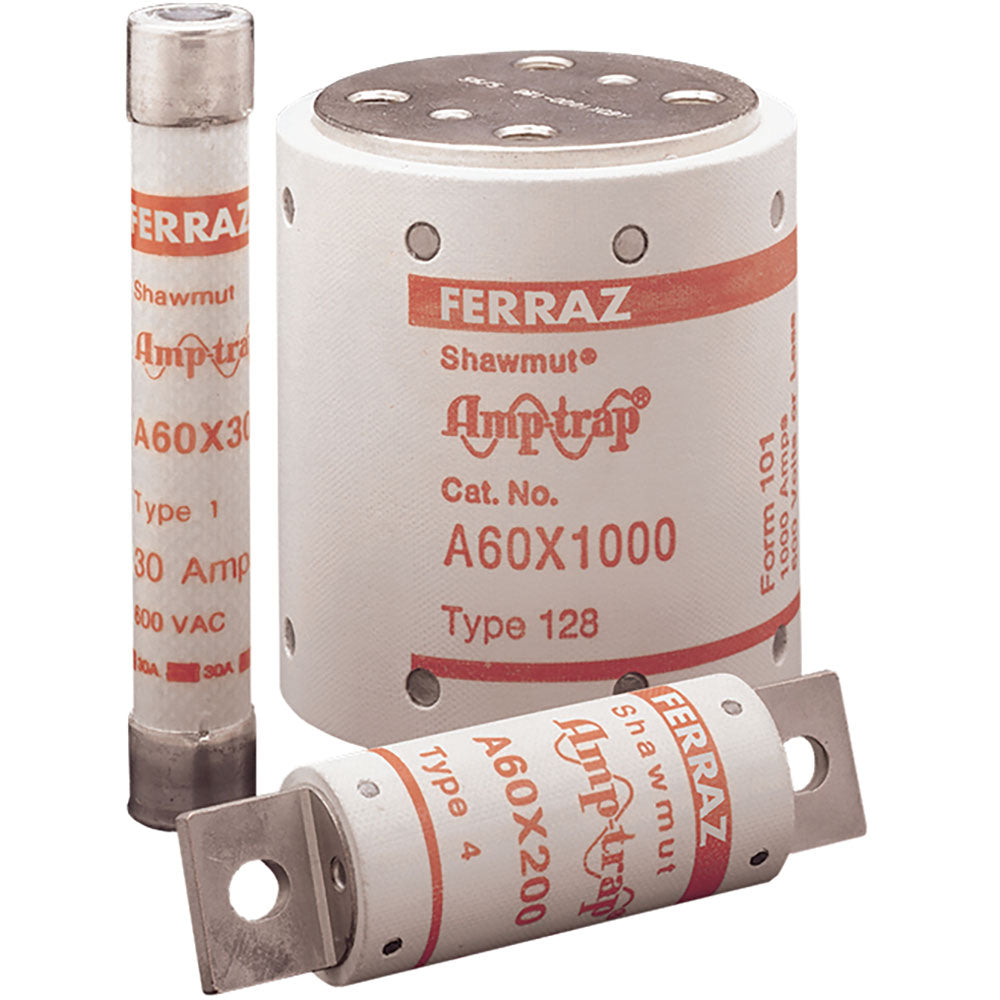

Ferraz Shawmut A60X500-4 - Low Voltage Fuse 500A (100kA@600V Interrupting Capacity)

Ferraz Shawmut A60X500-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for high-performance circuit protection in industrial applications. This 600V AC-rated fuse features a 500A current rating and 100kA interrupting capacity at rated voltage, housed in a compact 2-inch diameter single-barrel design with robust construction for reliable operation. The A60X series meets stringent industry standards for short-circuit protection, with a 2 lb weight for easy handling in panel installations. Typical applications include motor control centers, switchgear, and power distribution systems requiring fast-acting fault interruption.

Key Features & Specifications

• Type: A60X current-limiting fuse, single-element design with quartz sand filler
• Voltage Rating: 600V AC
• Current Rating: 500A
• Dimensions: 2" diameter
• Standards: UL/CSA listed
• Applications: Industrial switchgear, MCCs, power distribution
• AIC rating: 100kA@600V
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 782001943356
• GTIN: 00782001943356
