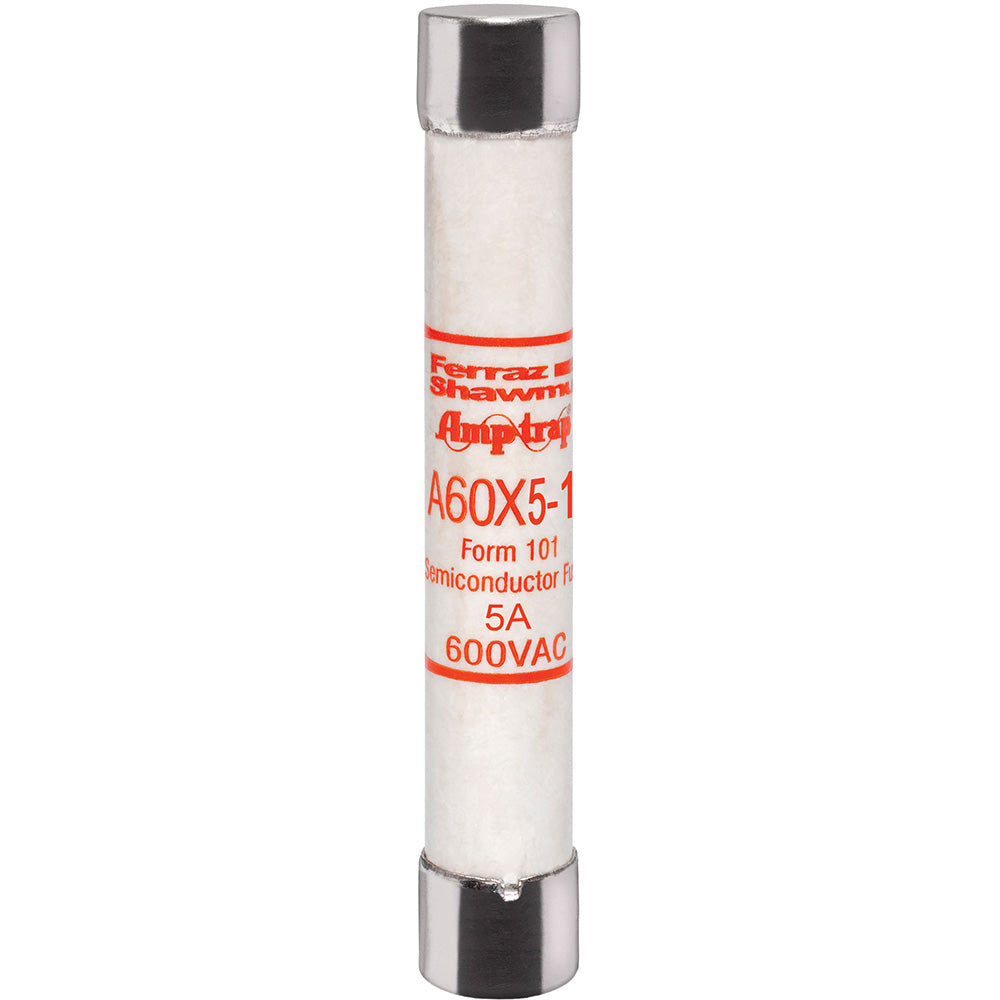

Cutler-Hammer A60X5-1 - Low Voltage Fuse 5A 600V (100kA AIC Rating)

The Cutler-Hammer A60X5-1 is a 5A low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection in electrical circuits. It features a 600V AC voltage rating and an impressive 100,000A interrupting rating at 600V AC, ensuring reliable operation under high-fault conditions. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 0.81 inches in diameter with a weight of 5.19 lb, providing a robust physical form factor. This fuse complies with industry standards for current-limiting protection devices and is typically deployed in industrial control panels, motor branch circuits, and feeder circuits where equipment protection is critical.

Key Features & Specifications

• Type: Amp-Trap A60X series, current-limiting, low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 0.81" diameter
• Standards: Industry standard current-limiting fuse
• Applications: Industrial control panels, motor branch circuits, feeder circuit protection
• Connection: Ferrule
• Barrels: 1
• AIC rating: 100kA @ 600V AC
• Weight: 5.19 lb

Product Identification

• UPC: 782001943394
• GTIN: 00782001943394
