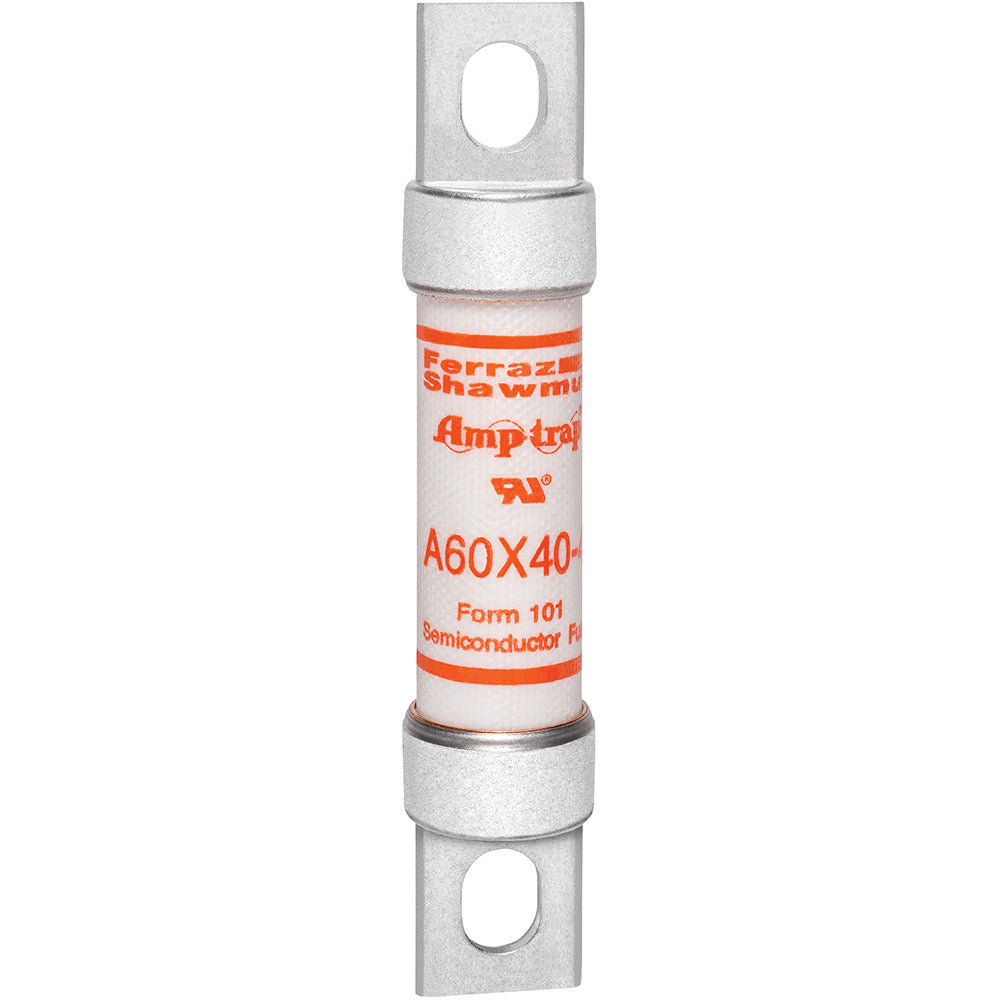

Cutler-Hammer A60X40-4 - Class A60X Fuse 40A (100kA AIC @ 600V)

The Cutler-Hammer A60X40-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical circuits and equipment. It features a 40A current rating and a 600V AC voltage rating, with an impressive 100kA interrupting capacity at 600V to safely clear high-level faults. The fuse is constructed with a single-barrel design, measures 0.81 inches in diameter, and weighs 0.2 lb for a compact and robust form factor. It is designed to meet rigorous industry standards for reliable performance in demanding industrial environments, making it suitable for protecting motor circuits, feeders, and branch circuits where high fault currents are present.

Key Features & Specifications

• Type: Amp-Trap Class A60X, Current-Limiting, Low-Voltage Fuse
• Voltage Rating: 600V AC
• Current Rating: 40A
• Dimensions: 0.81 inch Diameter
• Standards: Designed to meet industry standards for overcurrent protection
• Applications: Protection of motor circuits, feeders, and branch circuits
• AIC rating: 100kA @ 600V AC
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001943578
• GTIN: 00782001943578
