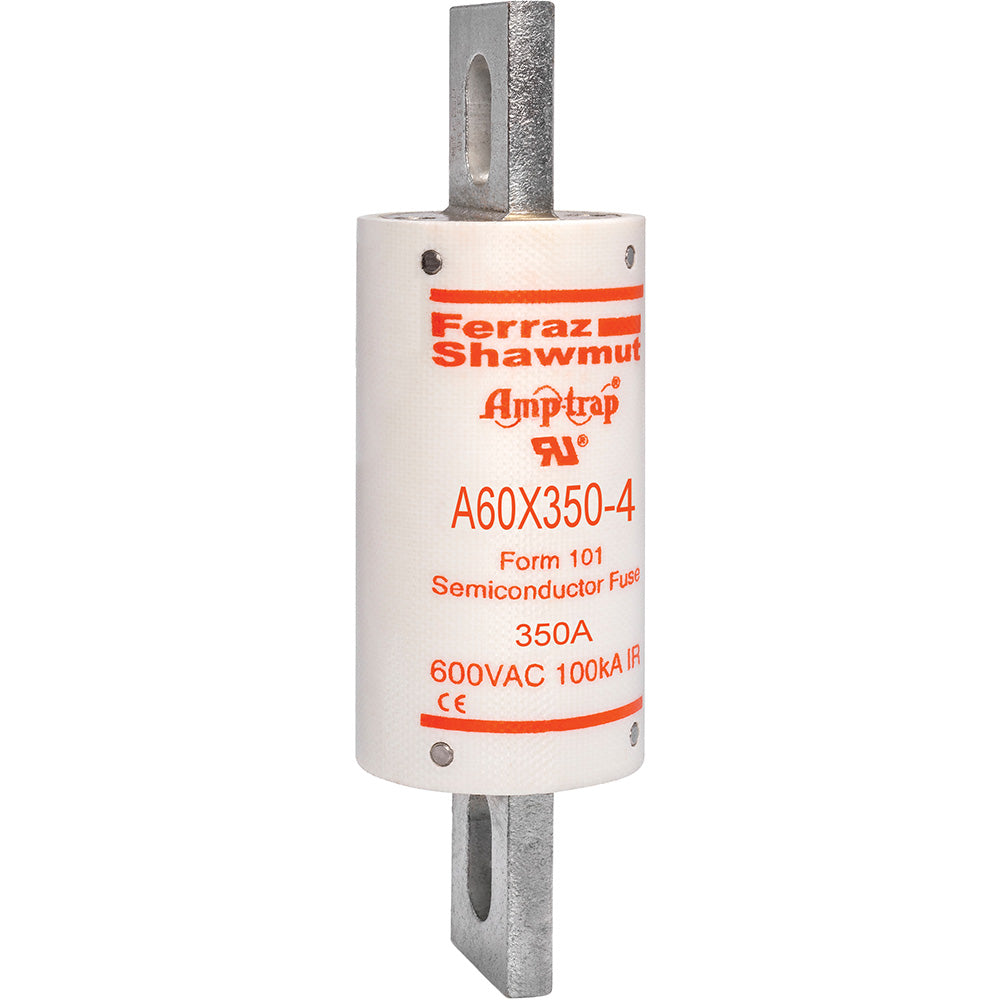

Ferraz Shawmut A60X350-4 - Low Voltage Fuse 350A@600V (100kA AIC)

Ferraz Shawmut A60X350-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial power distribution systems. Rated for 600V AC with a 350A current capacity, it provides 100kA interrupting capacity at rated voltage for reliable fault protection. The fuse features a compact cylindrical design with 1.5" diameter and 5.13" length, constructed with durable materials for harsh environments. It meets CE and UL standards (Guide JFHR2, File E60314) for safety compliance. Typical applications include motor control centers, switchgear, and industrial control panels requiring high-performance circuit protection.

Key Features & Specifications

• Type: A60X current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 350A
• Dimensions: 5.13" length x 1.5" diameter
• Weight: 2 lb
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 100kA@600V
• Certification: UL Recognized, CE
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 78200194484
• GTIN: 00782001944841
