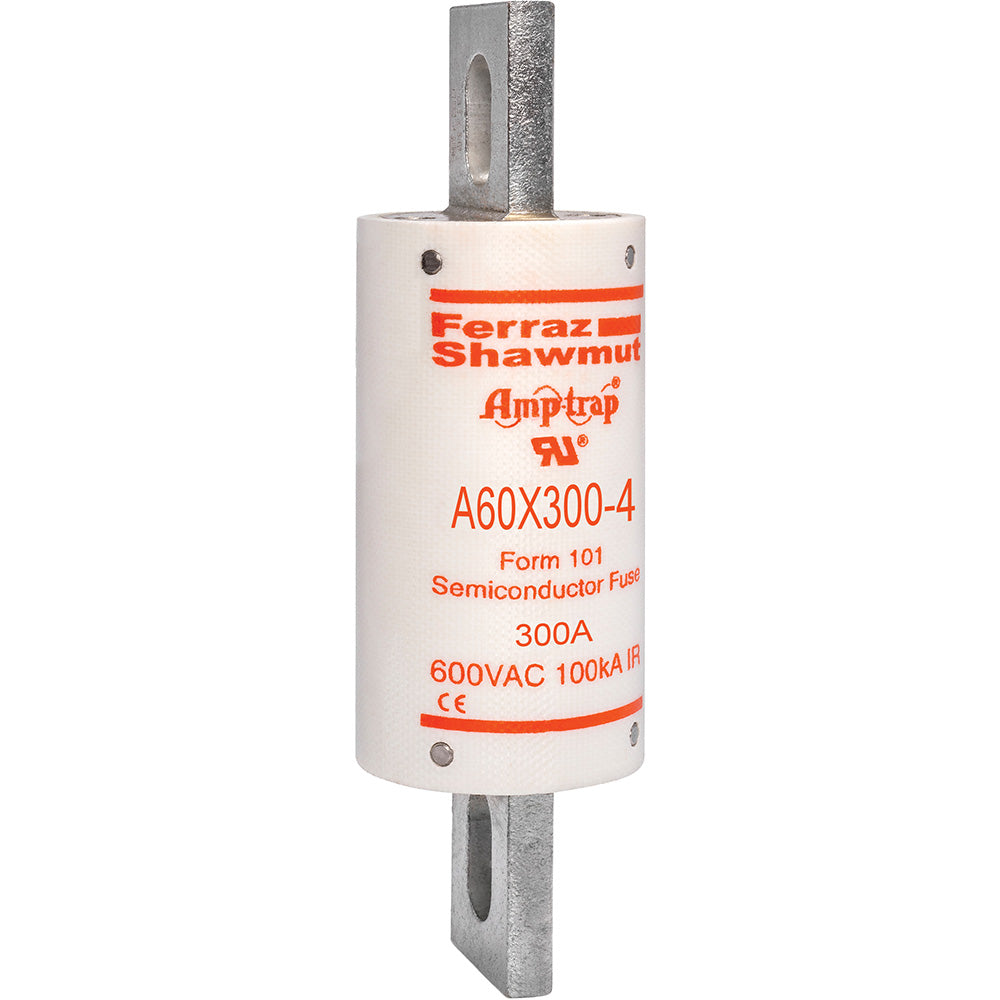

Cutler Hammer A60X300-4 - Amp-Trap Current-Limiting Fuse 300A (100kA AIC @ 600V)

The Cutler Hammer A60X300-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical distribution systems. It features a 300A current rating and a 600V AC voltage rating, with a high interrupting capacity of 100kA. The fuse is constructed as a single-barrel unit with a 1.5-inch diameter and a 5.13-inch body length, contributing to a robust physical profile. This component is certified to UL standards (Guide JFHR2, File E60314) and carries the CE mark, ensuring compliance with rigorous industry safety requirements. It is typically applied in industrial settings for the protection of feeders, mains, and motor circuits.

Key Features & Specifications

• Type: A60X, Amp-Trap, Low Voltage Current-Limiting Fuse
• Voltage Rating: 600V AC
• Current Rating: 300A
• Dimensions: 5.13 in Length, 1.5 in Diameter
• Standards: UL Recognized (Guide JFHR2, File E60314), CE
• Applications: Protection for feeders, mains, and motor circuits in industrial distribution systems
• AIC rating: 100kA @ 600V AC
• Barrels: 1
• Certification: CE, UL Recognized
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 078200194343
• GTIN: 00782001943431
