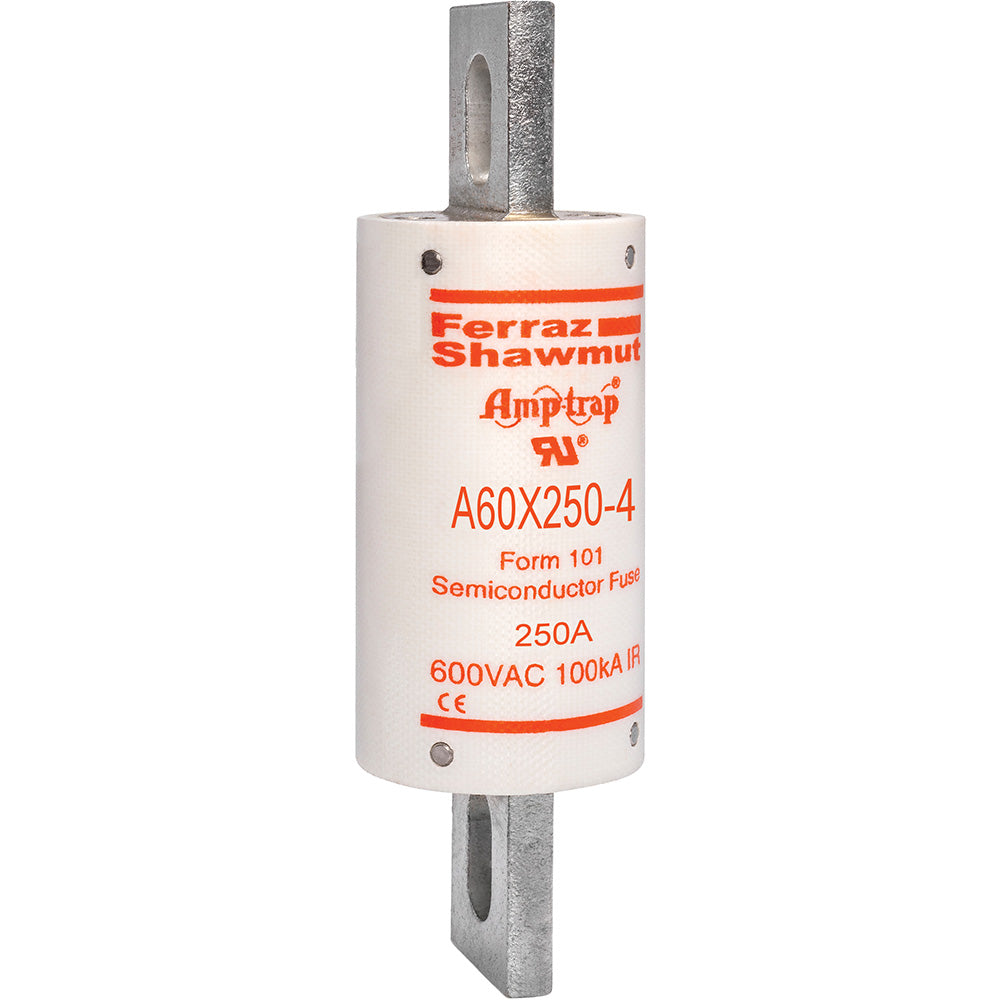

Cutler-Hammer A60X250-4 - Class A60X Current-Limiting Fuse 250A (100kA AIC @ 600V)

The Cutler-Hammer A60X250-4 is a Class A60X low-voltage current-limiting fuse designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 600V AC voltage rating and a 250A current rating, ensuring robust performance in demanding applications. The fuse is constructed as a single-barrel unit with a 1.5-inch diameter and a weight of 2 lb, engineered for durability. It complies with industry standards for current-limiting fuses and offers an interrupting rating of 100kA at 600V AC. This fuse is typically applied in motor branch circuits, feeder circuits, and service entrance equipment where high fault current interruption is critical.

Key Features & Specifications

• Type: Class A60X, Amp-Trap 2000, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 250A
• Dimensions: 1.5" Diameter
• Standards: Industry Standards for Current-Limiting Fuses
• Applications: Motor Branch Circuits, Feeder Circuits, Service Entrance Equipment
• AIC rating: 100,000A @ 600V AC
• Barrels: 1
• Weight: 2 lb
• Family: Amp-Trap

Product Identification

• UPC: 782001944827
• GTIN: 00782001944827
