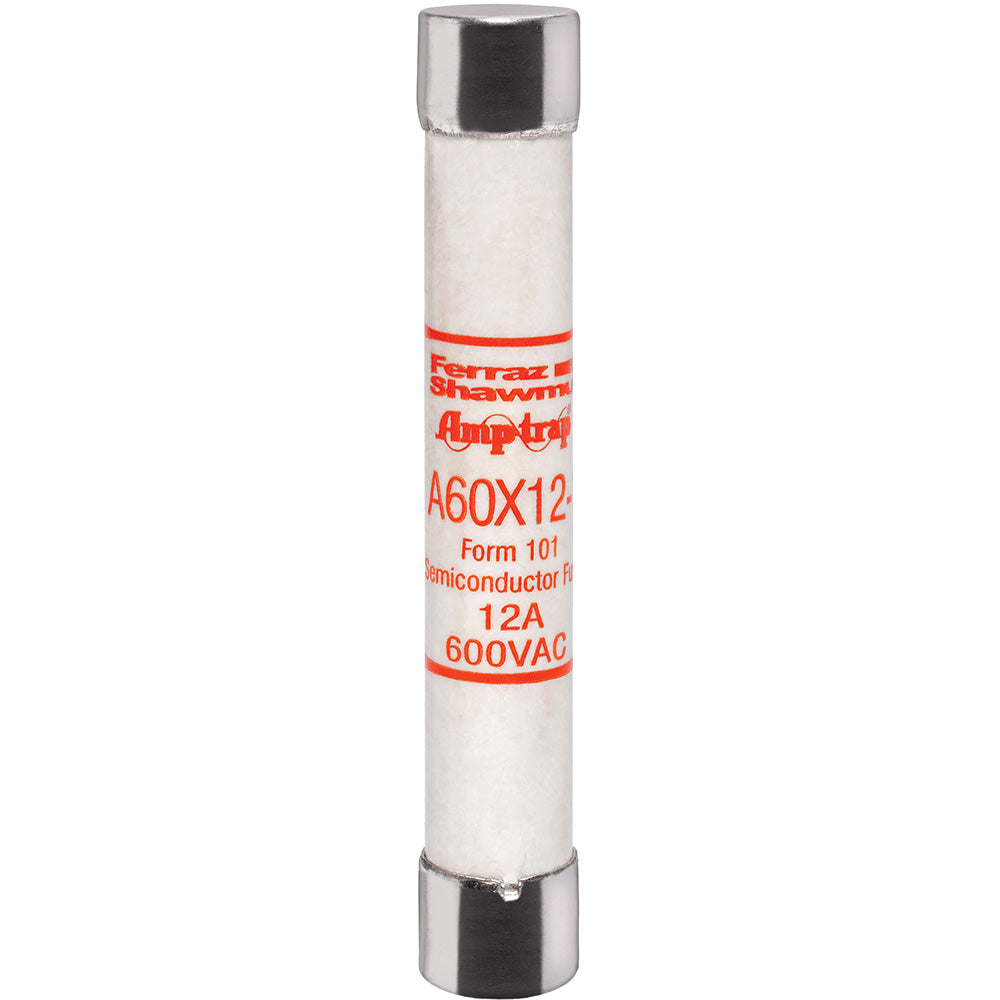

Cutler Hammer A60X12-1 - Class A60X Fuse 12A 600V (100kA AIC)

The Cutler Hammer A60X12-1 is a Class A60X low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for industrial electrical systems. It features a 600V AC voltage rating and a 12A current rating, capable of interrupting up to 100,000 amperes at 600V AC. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 0.81 inches in diameter with a weight of 5.19 lb. This fuse complies with industry standards for current-limiting fuses, making it suitable for protecting motor circuits, feeders, and branch circuits in demanding industrial and commercial applications.

Key Features & Specifications

• Type: Class A60X, Amp-Trap, Current-Limiting, Low-Voltage Fuse, Single Barrel, Ferrule Connection
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 0.81" Diameter
• Standards: Industry Standards for Current-Limiting Fuses
• Applications: Motor Circuit Protection, Feeder Protection, Branch Circuit Protection
• AIC rating: 100kA @ 600V AC
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 782001943363
• GTIN: 00782001943363
