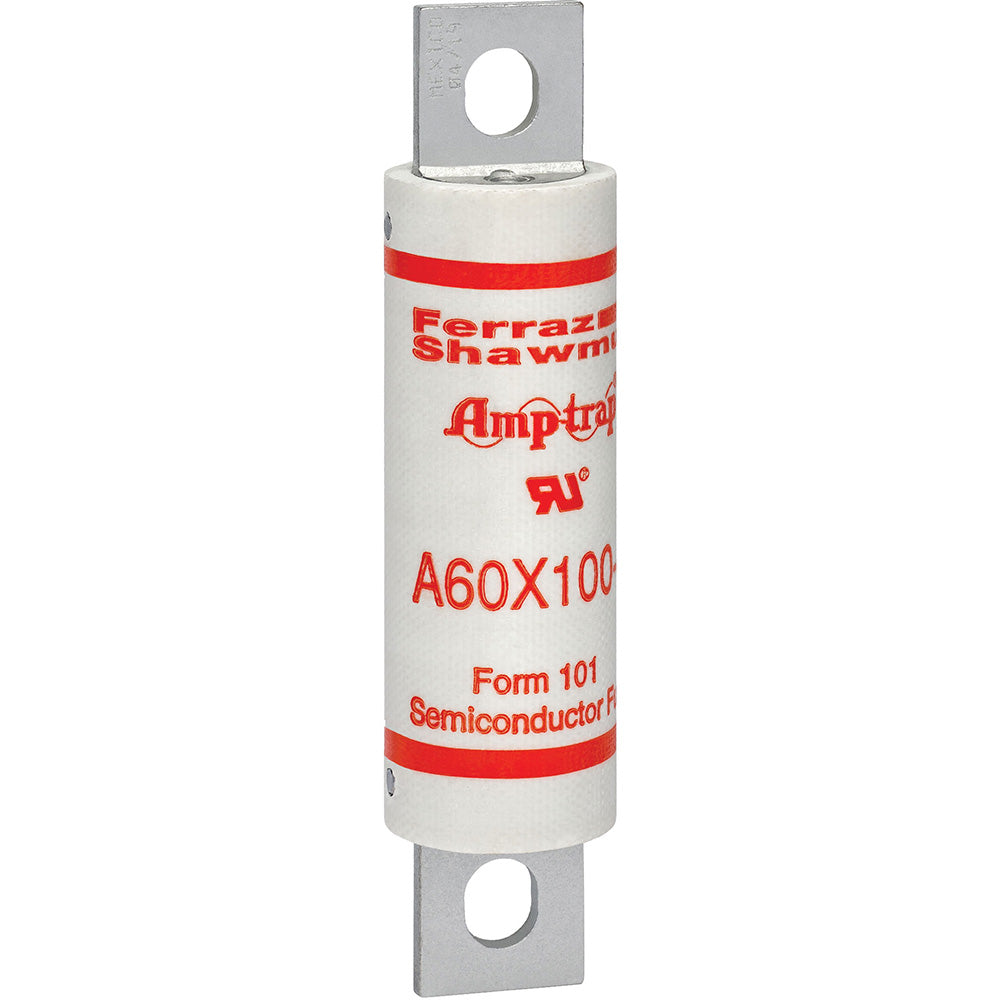

Cutler Hammer A60X100-4 - Low Voltage Current-Limiting Fuse 100A (100kA AIC @ 600V)

Cutler Hammer A60X100-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection for industrial electrical systems. It features a 100A current rating and a 600V AC voltage rating, with a high 100kA interrupting capacity at 600V to safely clear major fault currents. The fuse is constructed as a single-barrel unit with a 1-inch diameter and 4.41-inch length, providing a compact yet robust design. It complies with UL standards (Guide JFHR2, File E60314) and carries CE certification, ensuring adherence to rigorous safety and performance requirements. This fuse is typically applied in motor branch circuits, feeders, and mains where reliable protection against heavy fault currents is critical.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 1" Diameter x 4.41" Length
• Standards: UL Recognized (Guide JFHR2, File E60314), CE
• Applications: Motor Branch Circuits, Feeders, Mains, Industrial Electrical Systems
• AIC rating: 100kA @ 600V
• Certification: CE, UL Recognized
• Barrels: 1
• Diameter: 1 inch
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001943301
• GTIN: 00782001943301
