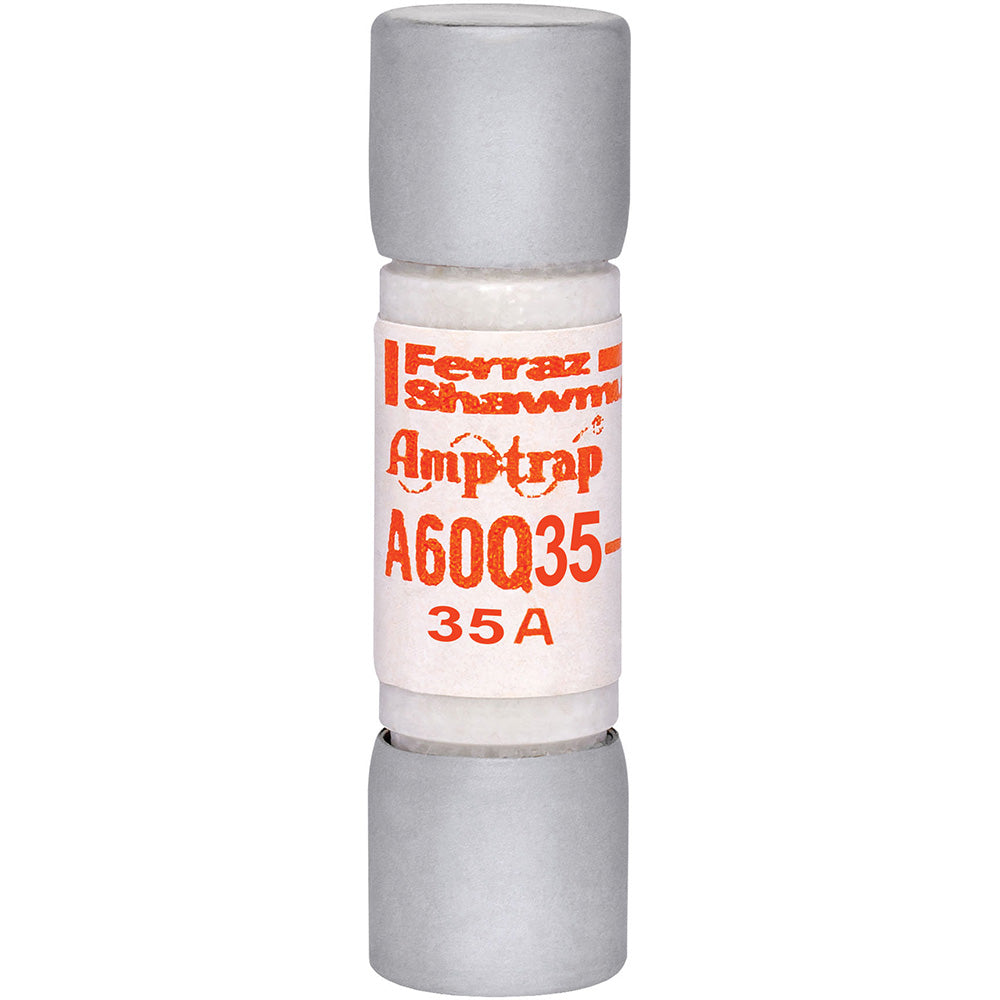

Cutler Hammer A60Q35-2 - Current-Limiting Fuse 35A (200kA AIC @600V)

The Cutler Hammer A60Q35-2 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical circuits and equipment. It features a 35A current rating and a 600V AC voltage rating, with an impressive 200kA interrupting capacity at its rated voltage to safely clear high-level faults. The fuse is constructed with a single-barrel ferrule connection design, measuring 1-1/2 inches in length and 0.41 inches in diameter, and weighs 0.02 lb for compact installation. This component complies with CE and UL standards (Recognized Component, Guide JFHR2, File E60314), ensuring reliable performance in demanding industrial environments. Typical applications include protection of motor circuits, transformers, and feeder circuits where high fault current interruption is critical.

Key Features & Specifications

• Type: A60Q current-limiting fuse, single barrel ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE, UL Recognized (Guide JFHR2, File E60314)
• Applications: Motor circuit protection, transformer protection, feeder circuit protection
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico
• Weight: 0.02 lb

Product Identification

• UPC: 78200114246
• GTIN: 00782001142469
