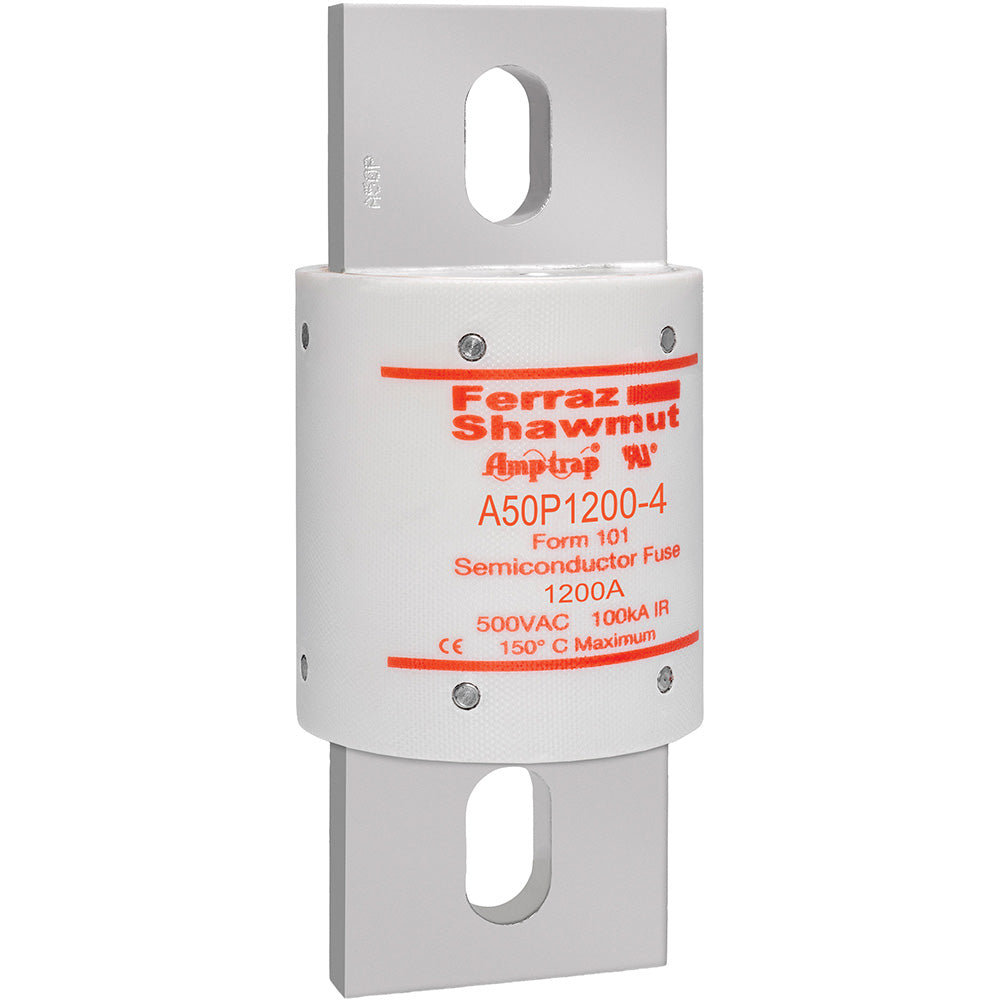

Cutler-Hammer A50P1200-4 - Amp-Trap Low Voltage Fuse 1200A (100kA AIC @ 500V)

The Cutler-Hammer A50P1200-4 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for industrial electrical systems. It features a 1200A current rating and a 500V voltage rating, with an impressive 100kA interrupting capacity at its rated voltage to safely clear high-level faults. The fuse is constructed with a single-barrel design, measures 3 inches in diameter, and utilizes a robust bolt-in blade connection for secure installation. This fuse complies with relevant industry standards for safety and performance, making it suitable for demanding applications such as service entrance equipment, motor control centers, and industrial power distribution systems.

Key Features & Specifications

• Type: Amp-Trap A50P, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 500V AC
• Current Rating: 1200A
• Dimensions: 3" Diameter
• Standards: UL Listed, CSA Certified
• Applications: Service Entrance Equipment, Motor Control Centers, Industrial Power Distribution
• AIC rating: 100kA @ 500V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 4 lb

Product Identification

• UPC: 782001949594
• GTIN: 00782001949594
